1. NEWTOP-138S paper cup machine's max capacity is up to 160pcs/min, suitable for the production of 5-16 ounces of cold/hot cups.
2. Implemented isolation design between transmission and mold.
3. Mechanical parts are guaranteed for 5 years, electrical parts and vulnerable parts are guaranteed for 1 year.
The desktop layout is adopted to separate the transmission components from the mold: this facilitates cleaning and maintenance.

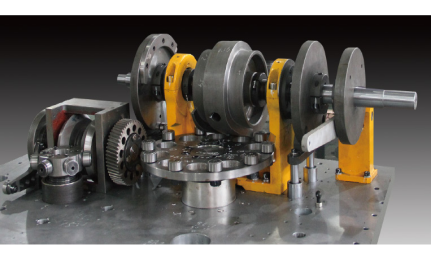

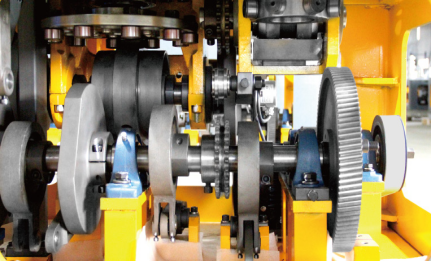

Employing automatic fuel injection lubrication, longitudinal shaft transmission structure, cylindrical turret indexing mechanism and gear transmission: ensuring the stability and quality of the entire machine
Using PLC, photoelectric tracking and servo feeding control: The maximum production capacity of the machine can reach 160 units per minute.
Strengthened cup bottom positioning
NEWTOP-138S ：High speed intelligent paper cup machine
.webp)
.webp)
.webp)
| Model | NEWTOP-138S |
| Weight | 3400kg |
| Machine encasement dimension | 3100 x 1600 x 2250mm |
| Cup counter encasement dimension | 1230 x 610 x 1900mm |
| Rated power | Three-phase, 380V, 26KW |
| Compressed Air | 0.6-0.8MPa, 0.5 m3 /min |
| Max Capacity | 160 pcs/min |
| Paper materials | Single PE / double PE / PLA |
| Paper thickness | 0.295-0.445mm |

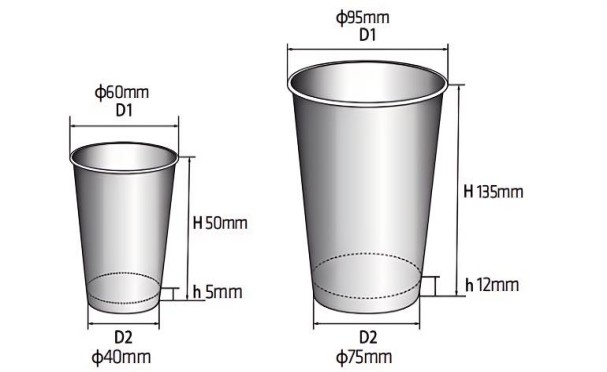

| Product range | (D1)φ60-95mm (H)50-135mm |
| (D2)φ40-75mm (h)5-12mm |

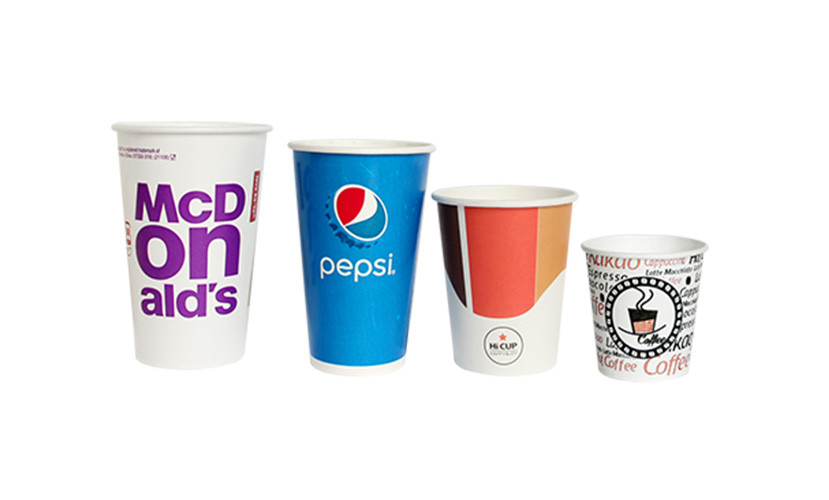

5oz-16oz Paper Cup Size
150 pcs/min Max Capacity
2.5oz-10oz Paper Cup Size
158 pcs/min Max Capacity
11oz-43oz Paper Bowl Size
180 pcs/min Max Capacity
New Debao people pursue the concept of high quality and technology leading.
By changing the working mode with intelligent paper cup machine to make the operation more and more simple.
