New Debao Unveils NEWTOP-168S9: A High-Speed, Intelligent Paper Cup Machine for the Future of Manufacturing

As the paper container industry continues to move towards high speed, intelligence and personalization, New Debao has launched a new upgraded masterpiece - NEWTOP-168S9 high speed intelligent paper cup machine. This is another flagship model after NEWTOP-138S, marking a new step for New Debao company in intelligent manufacturing and customer customized services.

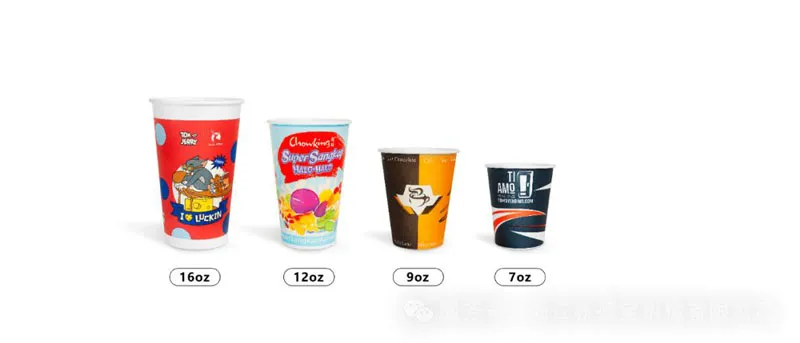

NEWTOP-168S9 boasts an ingenious design: the main machine adopts an upper-lower isolated platen structure, effectively separating the transmission mechanism from the actuator for enhanced stability, cleanliness, and durability. The transmission part features a "one horizontal and two vertical" dynamic shaft layout, while the actuator is equipped with an in-line suction feeding system and cup body forming technology. Combined with the dual turntable design of 10-station male mold + 9-station female mold, it enables multi-station curling (≥3 stations) and high-adaptability forming. The products feature uniform curling, precise dimensions, and strong paper compatibility, empowering users to easily tackle the production of 5-16oz cold/hot drink paper cups.

Paper cup machine Highlights: Intelligent Manufacturing Upgrade

Part 1: Structural Innovation for Stability and Durability
The upper-lower isolated structural design effectively separates the transmission and actuator mechanisms, enhancing the overall cleanliness and stability of the equipment while extending its service life.

Part 2: Dynamic Shaft Optimization for Precision and Efficiency
The transmission system adopts a "one horizontal and two vertical" layout for smoother operation; the dual turntable configuration (10-station male mold + 9-station female mold) enables high-speed and high-precision molding.

Part 3: Intelligent Control with Flexible Options
Equipped with a standard Schneider PLC control system, it supports optional Inovance or Schneider motion control systems, enabling multi-axis high-precision control and remote intelligent diagnosis.

Part 4: Multiple Frame Options for Flexible Adaptation
Three outer frame styles are provided: arc door, swing door, and wing door, meeting the personalized needs of different production environments and factory layouts.

Part 5: Hot Air System for Progressive Bonding
Optional dual station four hot air modules adopt progressive heating technology, ensuring firmer bonding of the middle seam of paper cups and improving product consistency.

Part 6: Knurling System for Seiko Upgrades
The servo knurling system supports two-stage pressure application for tighter bottom bonding; the super knurling assembly increases bearing life by 10 times, ensuring more stable pressure output.

Part 7: Curling Process with Ingenious Polishing
The material feeding rack is equipped with a spray humidification function. Combined with the triple curling stations, the curling R angle can reach over 450°, making the cup rim rounder and the touch smoother, highlighting premium quality.

NEWTOP-168S9 paper cup machine  not only achieves comprehensive performance upgrades but also embodies NewDebao's service philosophy of "creating greater value for customers." We provide each user with the solution of "multi-configuration per machine and precise matching," allowing the machine to adapt to customers rather than vice versa. This model is now officially launched—welcome to schedule a trial run or inquire about configuration solutions. NEWTOP-168S9 opens a new chapter in paper cup intelligent manufacturing, helping customers stay ahead in the market!
