Servo Paper Cup Machine
175
NEWTOP-FB158S Series

Servo Paper Cup Machine

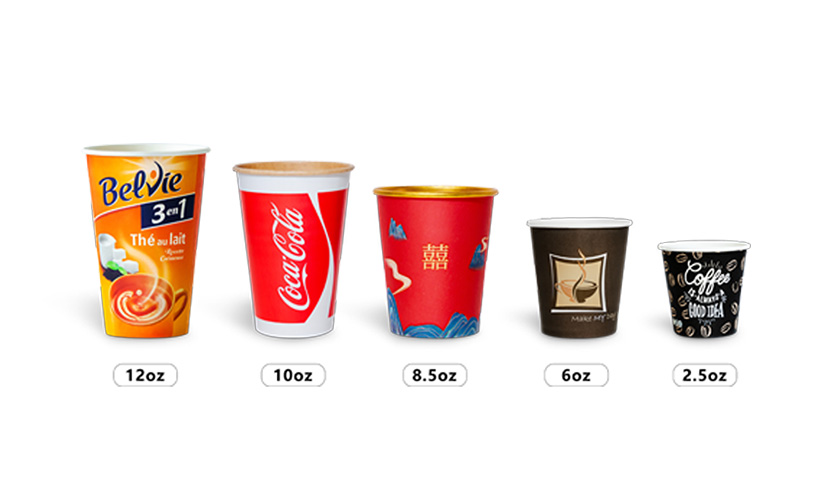

1. NEWTOP-FB158S servo paper cup machine’s max capacity is up to 175pcs/min, suitable for the production of 2.5-12 ounces of cups. NEWTOP-FB158SV1 is the upgraded model, with a max capacity of up to 168pcs/min, CE certified, suitable for cup rim outer diameter D1 φ50-85mm and bottom diameter D2 φ35-60mm.

2. Small in size, specially designed for small cups and thin paper market universal paper cups.

3. Mechanical parts are guaranteed for 3 years, electrical parts and vulnerable parts are guaranteed for 1 year.



SUBMIT INQUIRY

Machine Highlights

Servo driven function:It has the advantages of making the machine as a whole more intelligent and regulating more precisely.

Digital control mode and servo motor:Achieve a fast, accurate and stable paper cup forming effect.

Ethernet real-time control technology, distributed clock mechanism, electronic cam technology, and general DC bus: all these technologies operate efficiently, stably and precisely for control.

The paper cup forming is achieved through high-precision servo motor control, ensuring fast, accurate and stable cup shaping.

Focus On NEWTOP-FB158S Series

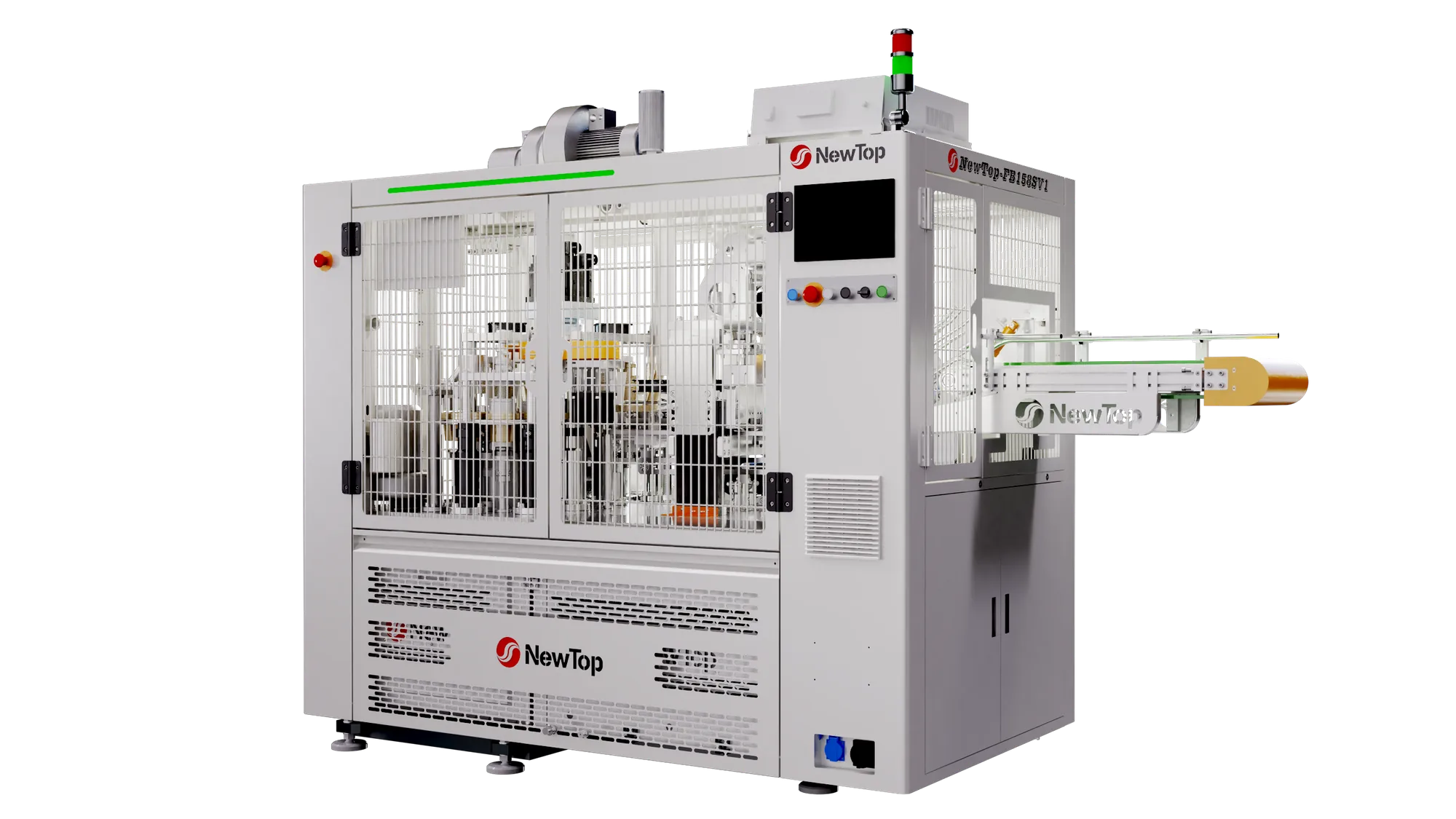

NEWTOP FB158SV1
NEWTOP FB158SV1
FB158S
FB158S

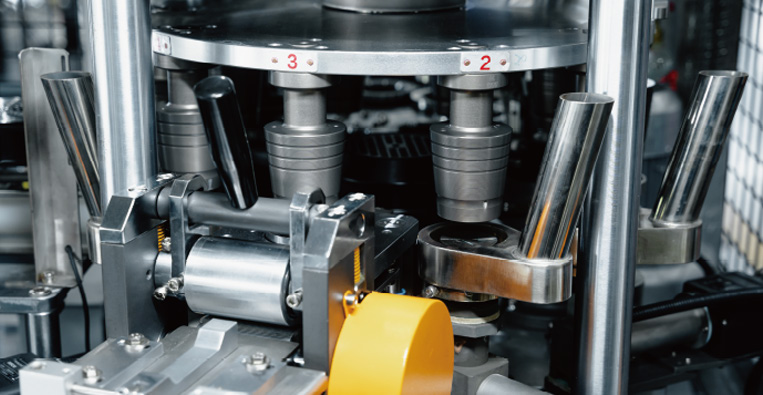

Ultra 360° rolled edges
Ultra 360° rolled edges
Large Size Paper Cups
Large Size Paper Cups
bottom triple hot air
bottom triple hot air

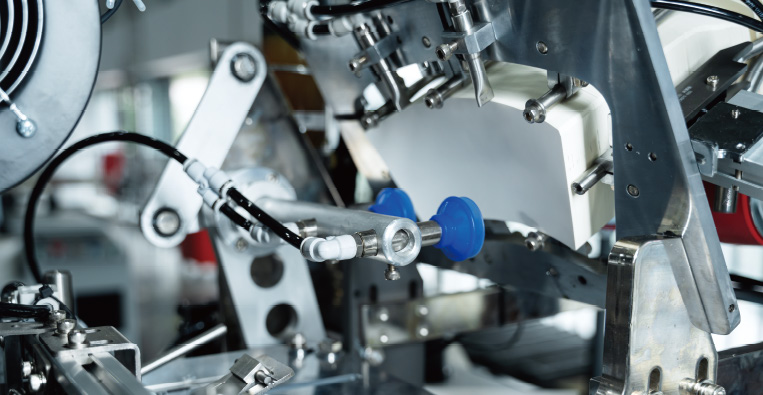

paper feeding
paper feeding

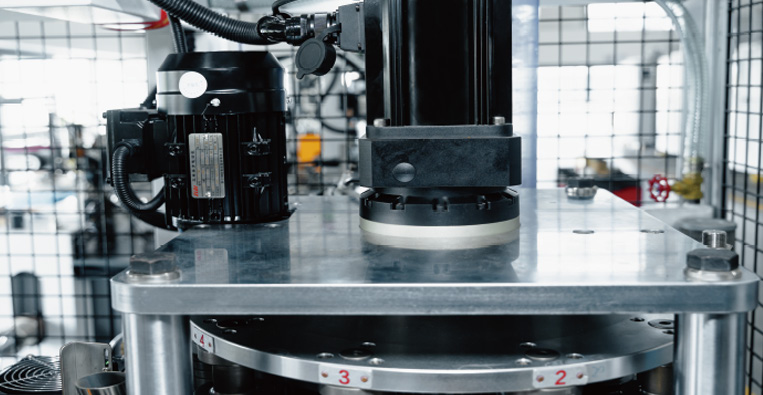

servo turntable
servo turntable

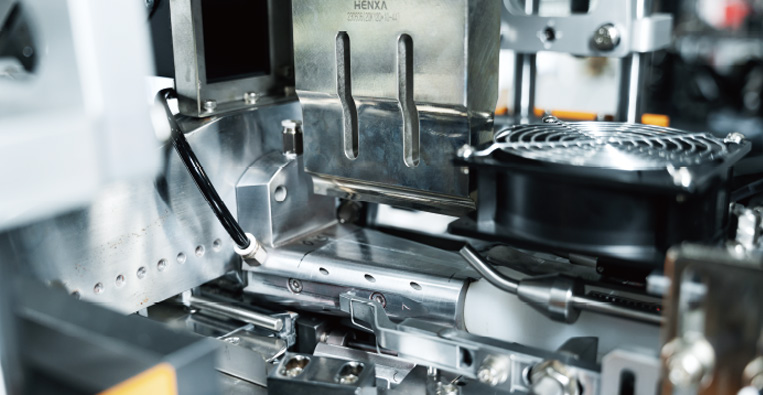

side sealing
side sealing

Product information

Model NEWTOP-FB158S NEWTOP-FB158SV1
Certification - CE
Weight 2500kg 2500kg
Machine encasement dimension 2300x1600x2000mm 2.3 x 1.6 x 2 m
Cup counting holder packing specifications 1230x610x1900mm -
Rated power Three-phase 380V, 22KW Three-phase 380V, 22KW
Compressed air 0.5-0.7MPa, 0.3 m3/min 0.5-0.7 MPa, 0.3 m3/min
Max Capacity 175 pcs/min Max 168 pcs/min
Paper materials Single PE / Double PE Single PE / Double PE / PLA
Paper thickness 0.22-0.35 mm 0.22-0.45 mm

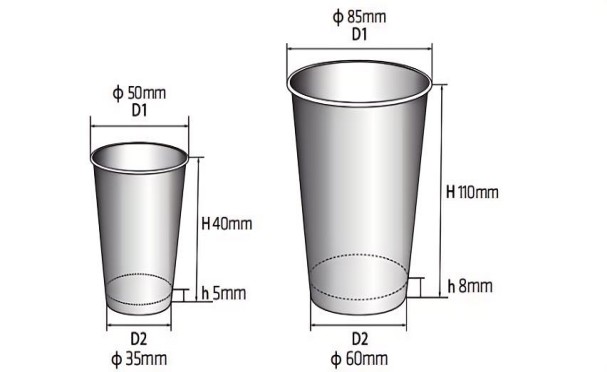

Cup rim outer diameter (D1) φ50-85 mm φ50-85 mm
Bottom diameter (D2) φ35-60 mm φ35-60 mm
Forming height (H) 40-110 mm 40-110 mm
Bottom depth (h) 5-8 mm -
