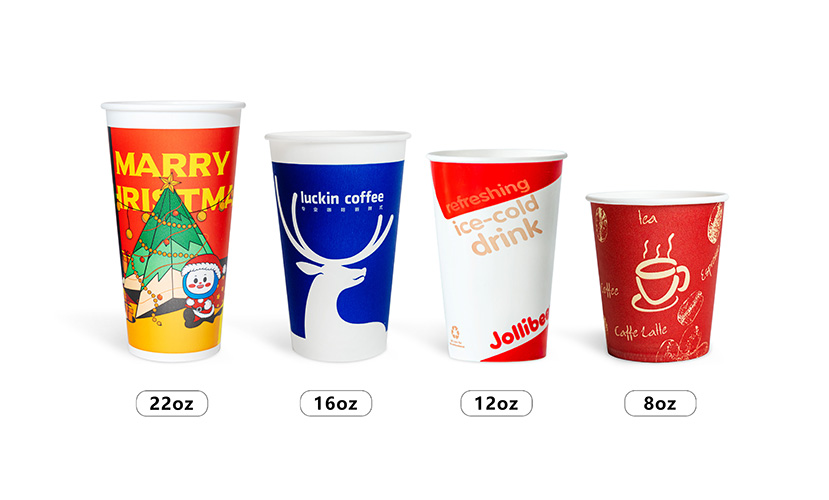

1.NEWTOP-258S horizontal type high speed intelligent paper cup machine's max capacity is up to 260 pcs/min, suitable for the production of 8-22 ounces of cups.
2.It obtained the American patent (certificate No.: US 11241857B2) on Feb. 8, 2022
3.Mechanical parts are guaranteed for 5 years, electrical parts and vulnerable parts are guaranteed for 1 year.

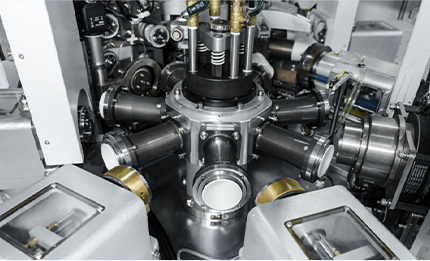

Paper cups four-station centre seam pressure bonding：It can produce over 260 cups per minute, which is 7 times that of a vertical cup production machine.

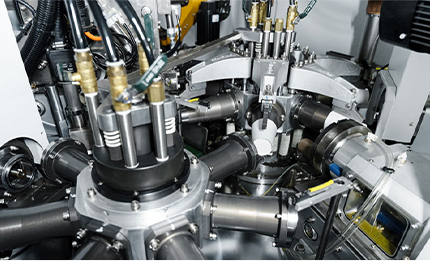

Cup bottom knurling assembly of high strength：The rolling pressure is more than twice that of the vertical machine, 99.99% of the leakage problems have been resolvedand its service life is ten times that of the vertical machine.
Ethercat high-speed bus communication and the imported German Pfeiffer high-speed motion control system：Provide Ethernet information, digital extraction window, and support ERP data interfaces for the information departments of machines and factories.
Equipped with the sixth-generation intelligent control system of New Debao and the navigation software operating system：IOT touch screen can be upgraded remotely with software to assist in equipment troubleshooting.
IOT touch screen can be upgraded remotely with software to assist in equipment troubleshooting, equipped with the sixth-generation intelligent control system of NewDeBao, navigational software operating system.
| Model | NEWTOP-258S |
| Weight | 7500 kg |
| Machine encasement dimension | 3300 x 2140 x 2250mm |
| Rated power | Three-phase, 380V, 55KW |
| Compressed air | 0.5-0.7 MPa, 0.5 m³/min |
| Max Capacity | 260 pcs/min |
| Paper materials | Single PE / double PE / PLA |
| Paper thickness | 0.295-0.47mm |

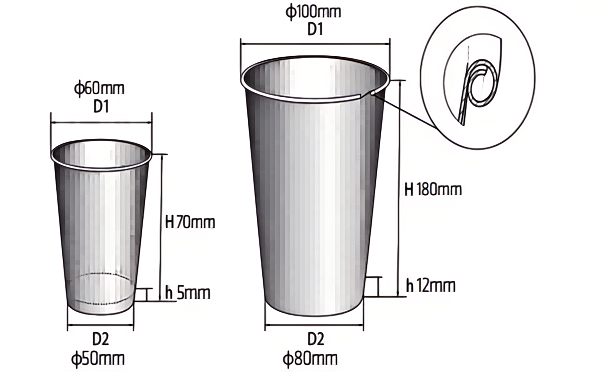

| Product range | (D1) φ60-100mm (H)70-180mm |
| (D2) φ50-80mm (h)5-12mm |

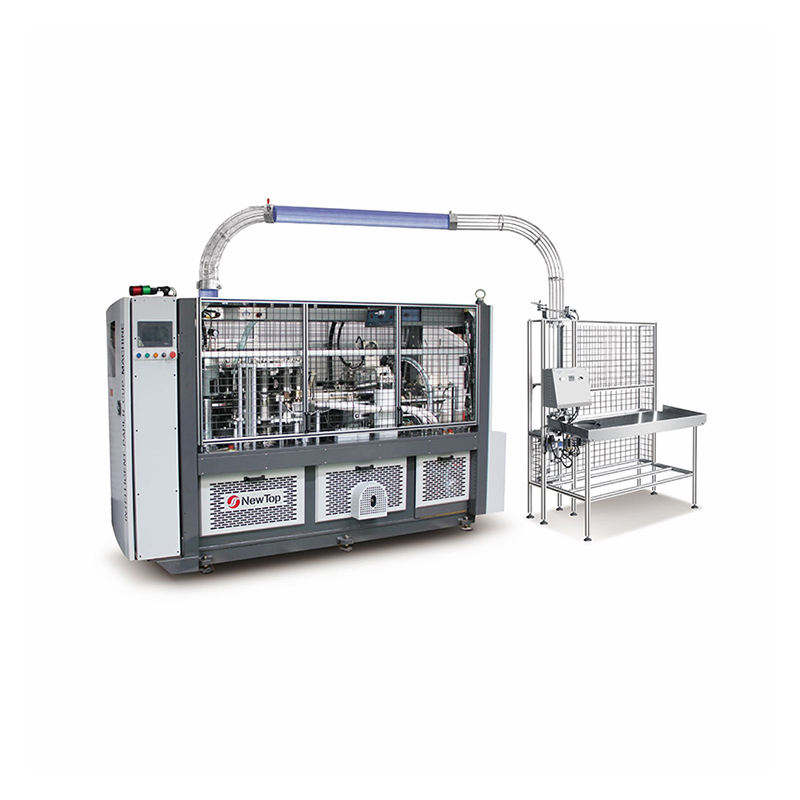

2.5oz-12oz Paper Cup Size
175 pcs/min Max Capacity

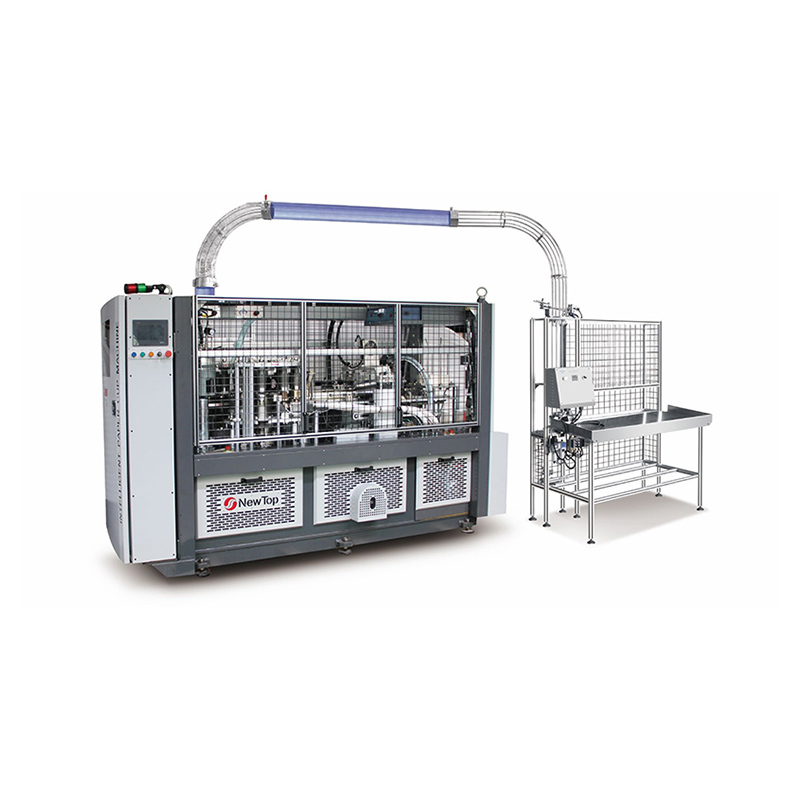

5oz-16oz Paper Cup Size
168 pcs/min Max Capacity
New Debao people pursue the concept of high quality and technology leading.
By changing the working mode with intelligent paper cup machine to make the operation more and more simple.
