1. The NEWTOP-118S+ZY high-speed intelligent paper cup machine adopts servo-driven control and ultrasonic sealing for stable production.
2. Motion-control PLC with full-process photoelectric tracking ensures consistent cup quality.
3. CE certified; mechanical parts are guaranteed for 3 years, electrical parts for 1 year.

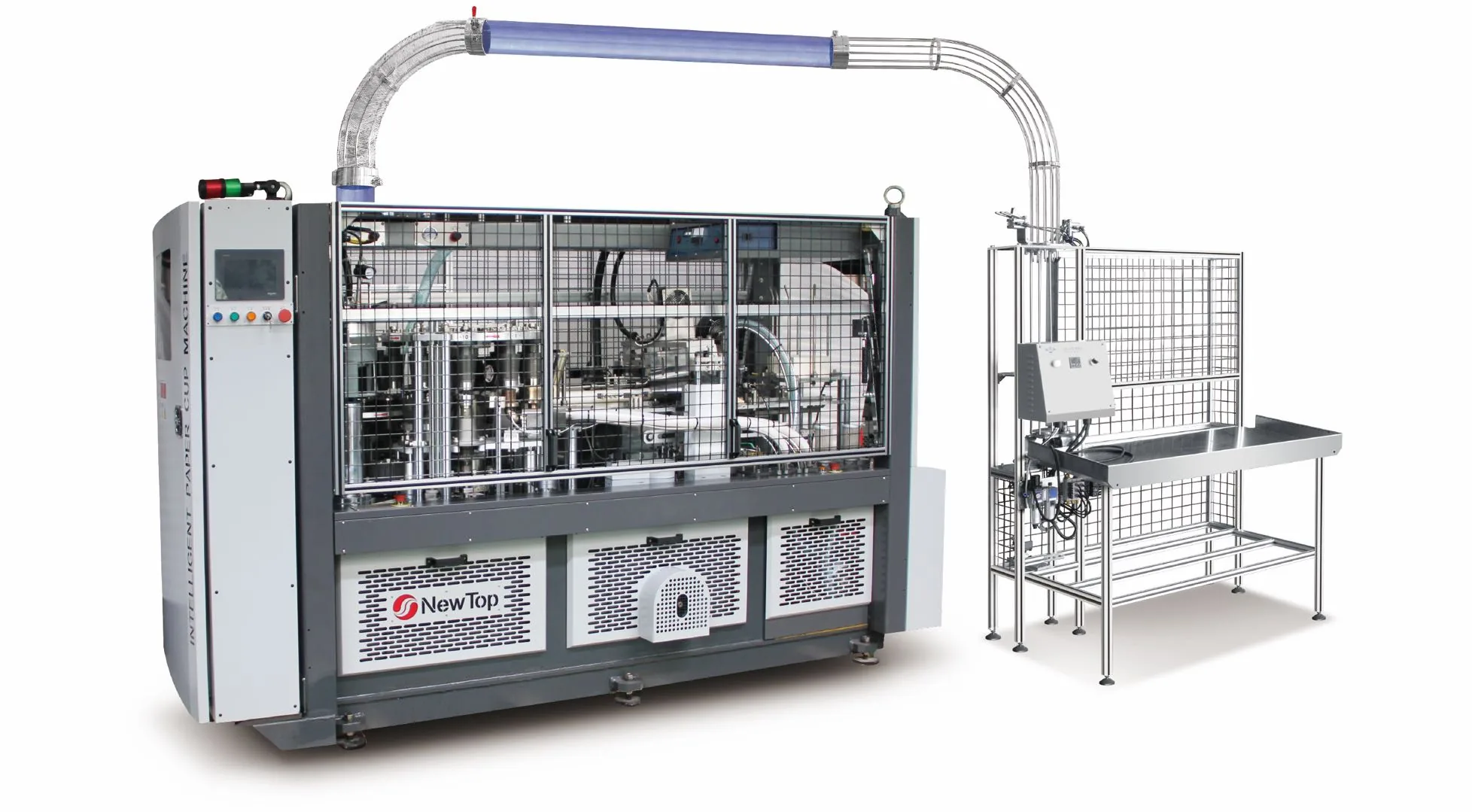

High Speed Intelligent Paper Cup Machine
Servo-driven control for stable, high-precision forming
Ultrasonic sealing for reliable cup-body sealing
Full-process photoelectric tracking
CE certified, robust frame design
| Model | NEWTOP-118S+ZY |
| Weight | 3300 kg |
| Machine encasement dimension | 3100 x 1600 x 2250 mm |
| Cup counting holder packing specification | 1230 x 610 x 1900 mm |
| Rated power | Three-phase 380V, 26KW |
| Compressed air | 0.6-0.8 MPa, 0.5 m3/min |
| Max Capacity | 150 pcs/min |
| Paper materials | Single PE / Double PE / PLA |
| Paper thickness | 0.295-0.445 mm |
| Product range (D1) | φ60-95 mm (H)50-135 mm |
| Product range (D2) | φ40-75 mm (h)5-12 mm |

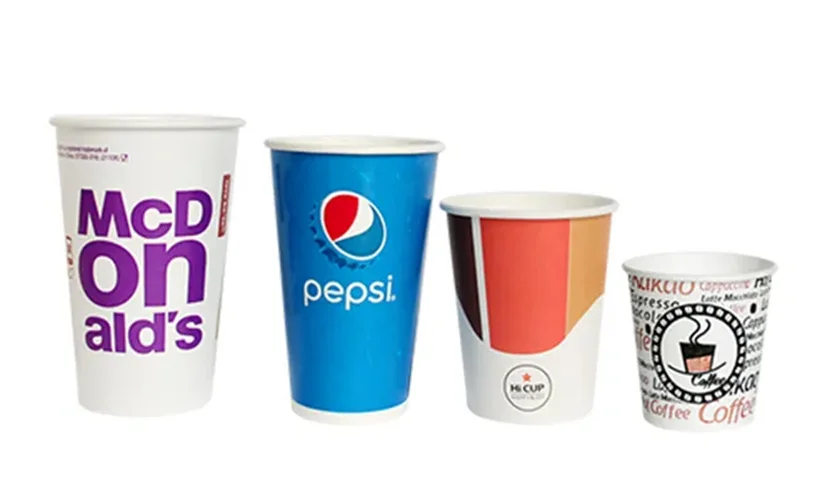

2.5oz-12oz Paper Cup Size
168-175 pcs/min Max Capacity
16-42oz Paper Cup Size
140 pcs/min Max Capacity
16-22oz Paper Cup Size
138 pcs/min Max Capacity
New Debao people pursue the concept of high quality and technology leading.
By changing the working mode with intelligent paper cup machine to make the operation more and more simple.
