1. Core technology: digital servo control with Ethernet real-time sync, electronic cam, and shared DC bus architecture.

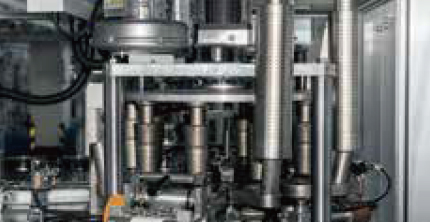

2. Mechanical layout: transmission-execution separation, parallel high-rigidity shafts, dual turntable servo + precision reducer drive.
3. Production range: 16-42oz cups via mold change, up to 140 pcs/min; sheet metal body with mesh doors for cooling and safety.
New exterior design: Sheet metal craftsmanship with superior heat dissipation and higher production efficiency — a new benchmark in intelligent paper cup manufacturing.
Human-machine interface: Redesigned HMI simplifies operation with optimized icons and layout for a significantly improved touchscreen experience.
Operation & maintenance: Improved protective structure and expanded workspace make daily operation and maintenance easier.
Safety protection: Door-limit interlock stops the machine when opened; one-way buttons linked with door limits provide dual personnel safety.
Bottom heating: Independent mechanical cam control maintains bottom heating time for stable, consistent heating results.
| Model | NEWTOP-FW135C |
| Weight | 3400kg |
| Machine encasement dimension | 2400x1900x2260mm |
| Rated power | Three-phase 380V, 38KW |
| Compressed air | 0.6-0.8MPa, 0.5m3/min |
| Max Capacity | 140pcs/min |
| Paper materials | Single PE/Double PE/PLA |
| Paper thickness | 0.2825-0.5025mm |
| Product range | (D1) φ80-130mm (H)110-210mm |
| (D2)φ60-100mm (h)8-10mm |
5oz-16oz Paper Cup Size
168 pcs/min Max Capacity
16-22oz Paper Cup Size
138 pcs/min Max Capacity
Paper Cup Size: 10 oz to 45 oz
Maximum Capacity: 135 pieces/min
New Debao people pursue the concept of high quality and technology leading.
By changing the working mode with intelligent paper cup machine to make the operation more and more simple.
