High Speed Intelligent Paper Cup Machine 168C

138

NEWTOP-168C

High Speed Intelligent Paper Cup Machine 168C

Name: High Speed Intelligent Paper Cup Machine 168C
Brand: NewTop
SKU: 00154
Rating: 4.9 (127 reviews)

1. The NEWTOP-168C high speed intelligent paper cup machine is completely redesigned based on the NEWTOP-168S9 platform, with transmission-execution separation architecture and one horizontal, two vertical motion axis layout for stable high-speed production.

2. Rotary paper suction combined with linear feeding and servo-driven ultrasonic cup body forming, plus dual turntables (10-station bottom / 9-station mouth), enable efficient multi-process forming from sheet to finished cup.

3. Multi-station rimming (≥3 stations), optional vision inspection, and modular frame / hot-air / knurling options support diverse high-grammage 16-22oz cup applications.

Paper Material

Single PE
Double PE
PLA

Paper Thickness

0.2825mm-0.445mm

Paper Cup Specification

8oz-22oz

SUBMIT INQUIRY

Machine Highlights

Launched November 2025 — NEWTOP-168C is New Debao's latest breakthrough in intelligent paper container forming, with modular architecture for "one machine, multiple configurations" tailored to your production line.

Three frame options: Arc door, flat door, and wing door frames adapt to different factory layouts for safe, efficient production.

Servo knurling motor (optional): Delivers 2 extra knurling turns vs. standard motors for stronger bottom bonding.

Dual-station four-path cup-rim hot air: Progressive heating for gentle, even heat transfer and optimized side-seam bonding.

Super knurling assembly: Bearing life up to 10× standard knurling wheels with more stable pressure output (size-dependent).

Triple curling: Three curling stations achieve rim radius R above 450°.

Auto spray assist: Smoother, rounder cup rims.

Variable-frequency hot air: Energy-saving cool-down when the machine stops.

Focus On NEWTOP-168C

NEWTOP-168C: Highly flexible and reliable all-rounder

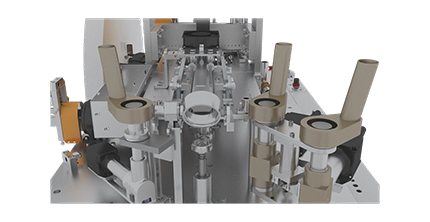

TRIPLE HOT AIR

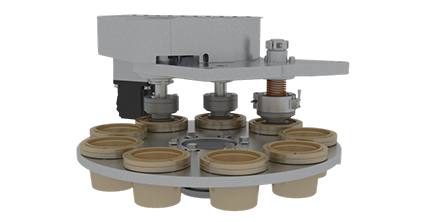

NINE-STATION FEMALE MOLD+TRIPLE CURLING STATIONS

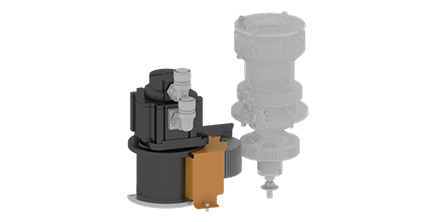

SERVO MOTOR FOR KNURLING

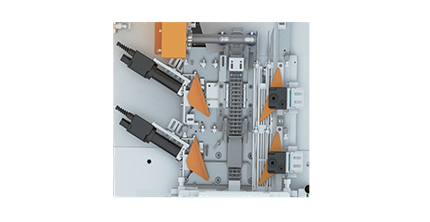

DUAL STATION FOUR HOT AIR

Product information

Model	NEWTOP-168C
Weight	7500 kg
Machine encasement dimension	3300 x 2140 x 2250mm
Rated power	Three-phase, 380V, 55KW
Compressed air	0.5-0.7 MPa, 0.5 m³/min
Max Capacity	138 pcs/min
Paper materials	Single PE / double PE / PLA
Paper thickness	0.295-0.47mm
Product range	(D1) φ60-100mm (H)70-180mm
Product range	(D2) φ50-80mm (h)5-12mm
