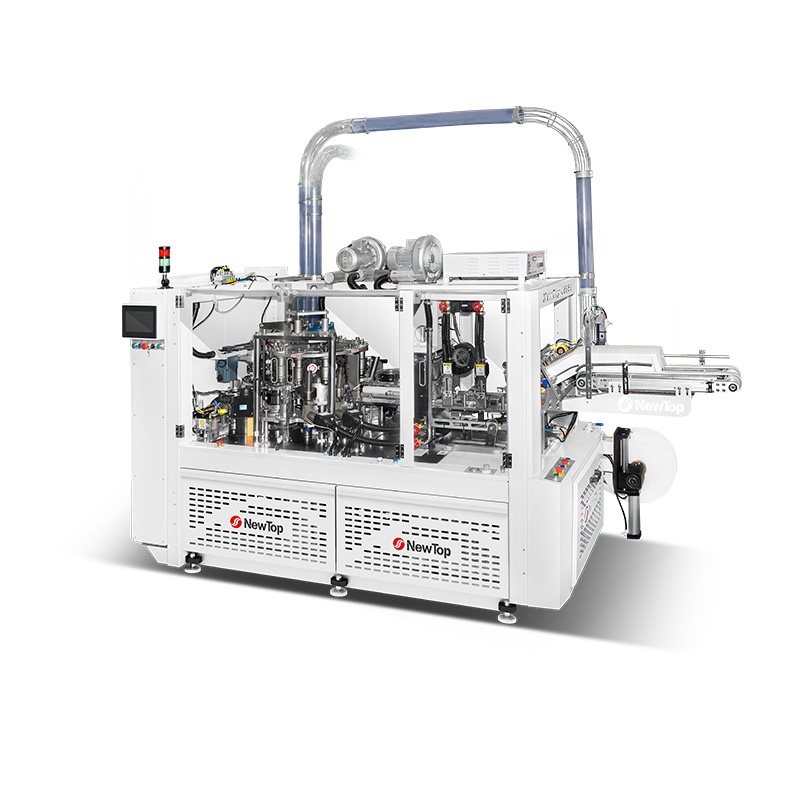

1. NEWTOP-168S9 high-speed intelligent paper cup machine, the main machine is the upgraded model of NEWTOP-138S, which cleverly separates the transmission and actuator.
2. NEWTOP-168S9 servo paper water cup type machine’s max capacity is up to168pcs/min, suitable for the production of 5-16 ounces of cups.
3. Mechanical parts are guaranteed for 5 years, electrical parts and vulnerable parts are guaranteed for 1 year.
Three types of door frame designs:Users can choose flexibly to meet the requirements of both efficiency and safety.
Schneider Programmable Logic Controller (PLC): Enhanced flexibility and more energy-efficient; HuaVon Motion Control System: Features high speed, high precision and multi-axis control.

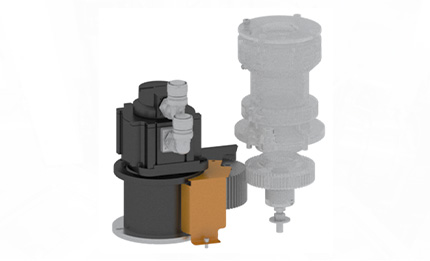

Servo motor embossing function: Compared with conventional motor embossing, two additional effect rollers have been equipped, thereby making the bottom bonding even more secure.
Dual-station four-channel hot air system: Utilizing progressive heating technology, it ensures a more gentle heat transfer, thereby achieving a better bonding effect at the middle seam
| Model | NEWTOP-168S9 |
| Weight | 3400kg |
| Machine encasement dimension | 3100x1600x2100mm |
| Cup counting holder packing specifications | 1230x610x1900mm |
| Rated power | Three-phase 380V, 38KW |
| Compressed air | 0.6-0.8MPa, 0.5m3 /min |
| Max Capacity | 168pcs/min |
| Paper materials | Single PE/Double PE/PLA |
| Paper thickness | 0.295-0.445mm |

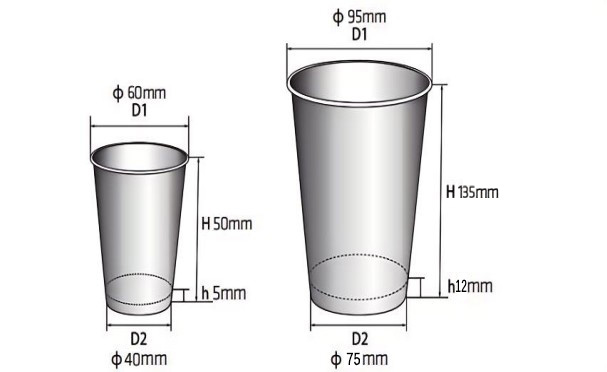

| Product range | (D1) φ60-95mm (H)50-135mm |
| (D2)φ40-75mm (h)5-12mm |

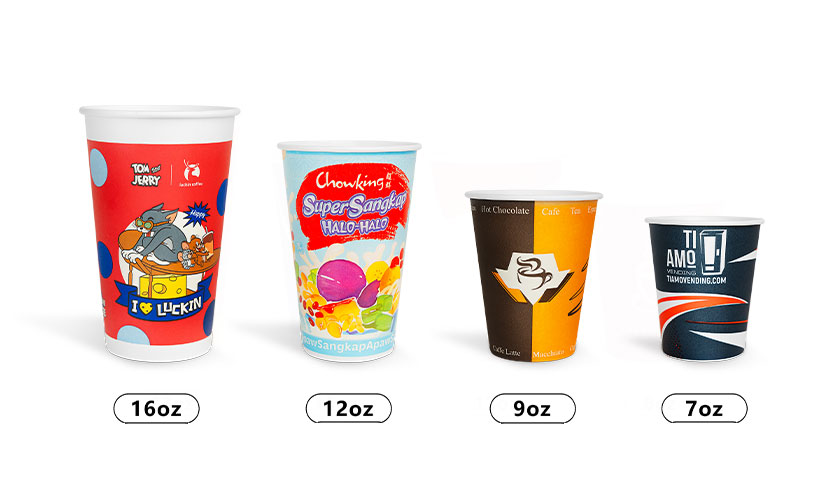

5oz-16oz Paper Cup Size
168 pcs/min Max Capacity
18oz-24oz Paper Cup Size
120 pcs/min Max Capacity
5oz-16oz Paper Cup Size
150 pcs/min Max Capacity
New Debao people pursue the concept of high quality and technology leading.
By changing the working mode with intelligent paper cup machine to make the operation more and more simple.
