NEWTOP-FB100S

Servo Paper Cup Manufacturing Machine

The servo drive function has the advantage of making the machine more intelligent and efficiently adjustable as a whole

NEWTOP-FB100S is an efficient, intelligent, and environmentally friendly paper cup forming machine

Paper Material

Single PE

Paper Thickness

0.22mm-0.35mm

Paper Cup Specification

5oz-16oz

SUBMIT INQUIRY

General Introduction

Adopting digital control mode

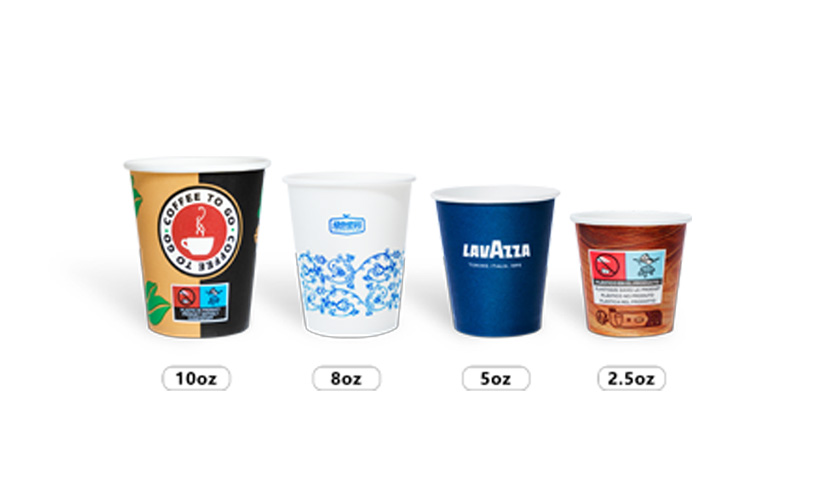

This model adopts servo motor high-precision control for paper cup forming, integrates Ethernet real-time control, distributed clock mechanism, electronic cam and other technologies to achieve efficient and stable production, suitable for 2.5oz-10oz paper cups, with a maximum speed of 150pcs/min.

Machine Highlights

More stable, efficient, and energy-efficient

More intelligent, digital, easier to operate, system mapping guidance, self-learning icons to adjust machine parameters

Small in size, specially designed for small cups and thin paper market universal paper cups

4-hour quick mold change, low cost

Focus On NEWTOP-FB100S

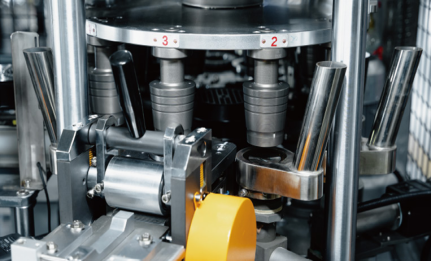

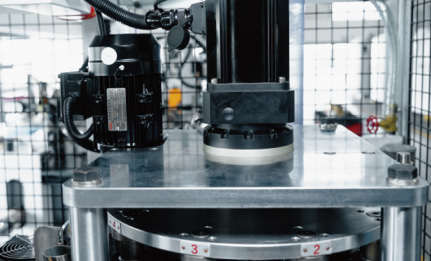

SERVO TURNTABLE SECTION

TRIPLE HOT AIR

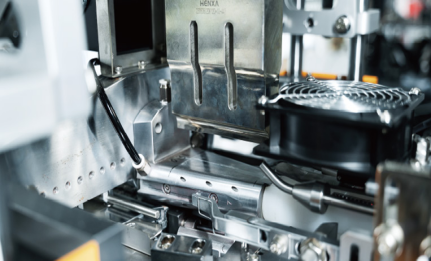

HOT AIR + ULTRASONIC

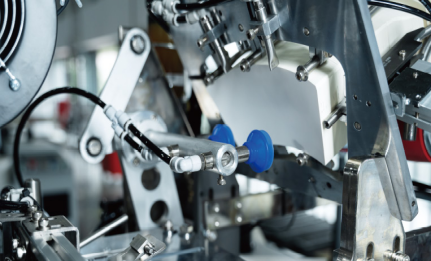

SINGLE ROTARY PAPER SUCTION

Technical Parameters

Model	NEWTOP-FB100S
Weight	2400kg
Machine encasement dimension	2200x1500x2000mm
Cup counting holder packing specifcations	1230x610x1900mm
Rated power	Three-phase 380V, 22KW
Compressed air	0.5-0.7MPa, 0.3m3 /min
Max Capacity	150pcs/min
Paper materials	Single PE
Paper thickness	0.22-0.35mm

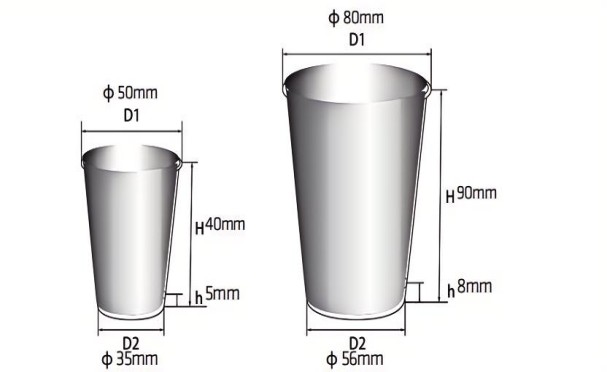

Productrange	(D1) φ 50-80mm (H)40-90mm (D2)φ 35-56mm (h)5-8mm
