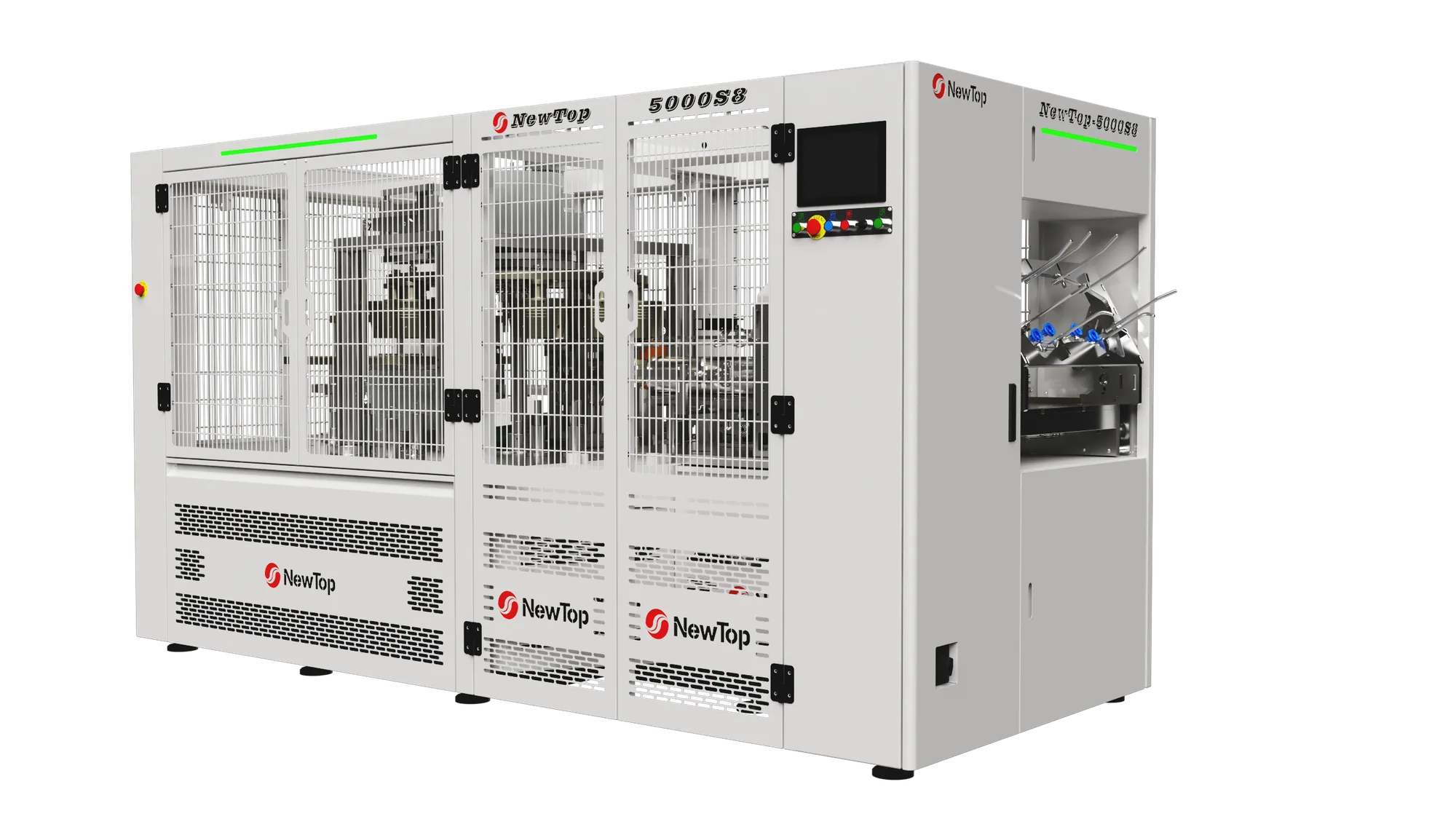

1. The NEWTOP-5000S8 high-speed intelligent paper bowl machine adopts a 4-axis distributed drive and servo ultrasonic sealing, suitable for 30OZ-170OZ paper bowls.
2. The 11-station bottom + 8-station rim dual-turntable layout realizes multi-process forming from blank sheet to finished bowl.
3. Sheet-metal frame with mesh-door structure improves heat dissipation and operational safety; mechanical parts are easy to clean and maintain.
4-axis distributed drive design: Optional direct-drive motor or mechanical indexing for the turntable, balancing rigidity and flexibility.

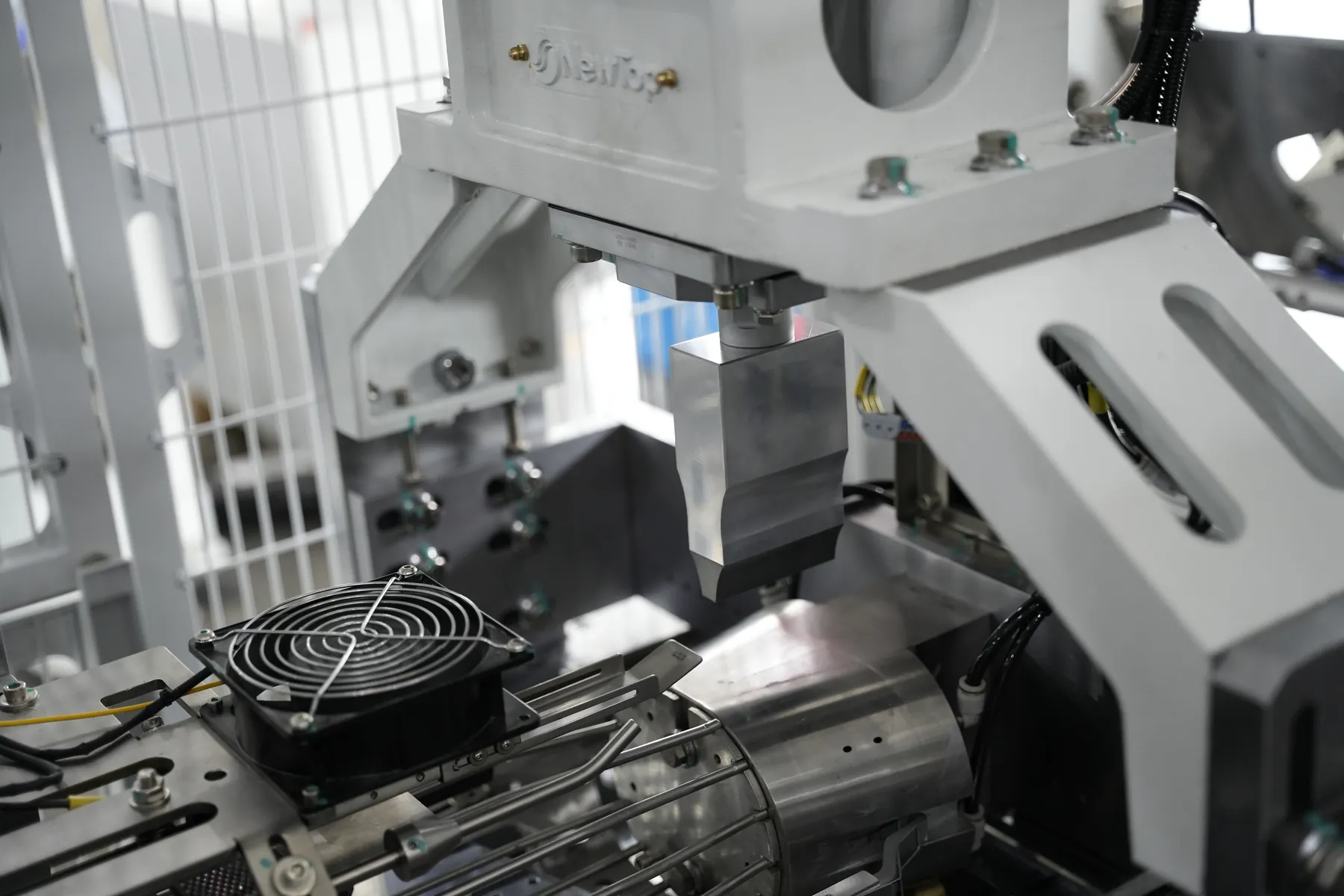

Servo-driven ultrasonic sealing and clamp-and-hold cup-body forming: Ensures stable, high-precision bowl-body forming.

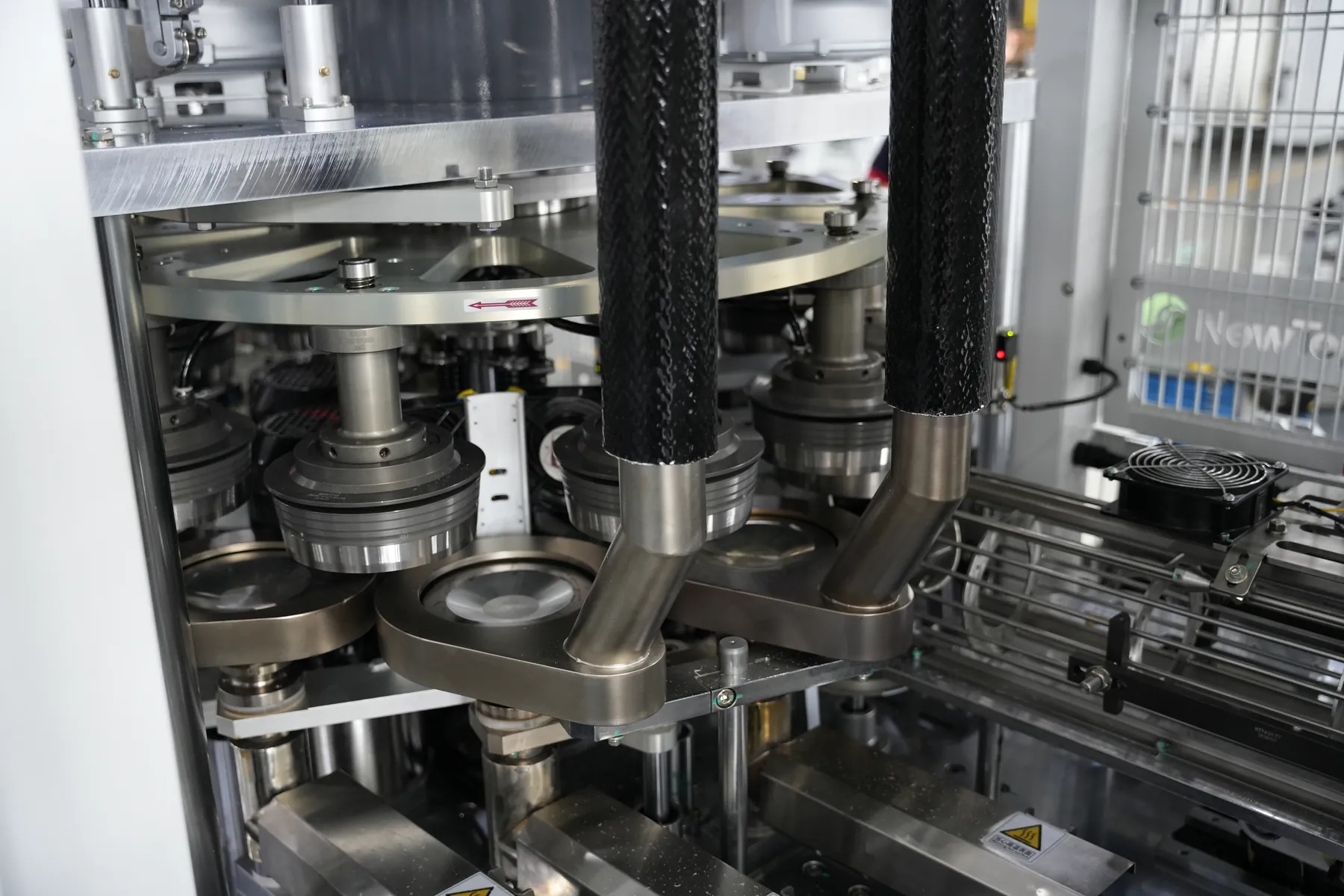

11-station bottom + 8-station rim dual-turntable: Realizes multi-process forming from blank sheet to finished bowl.

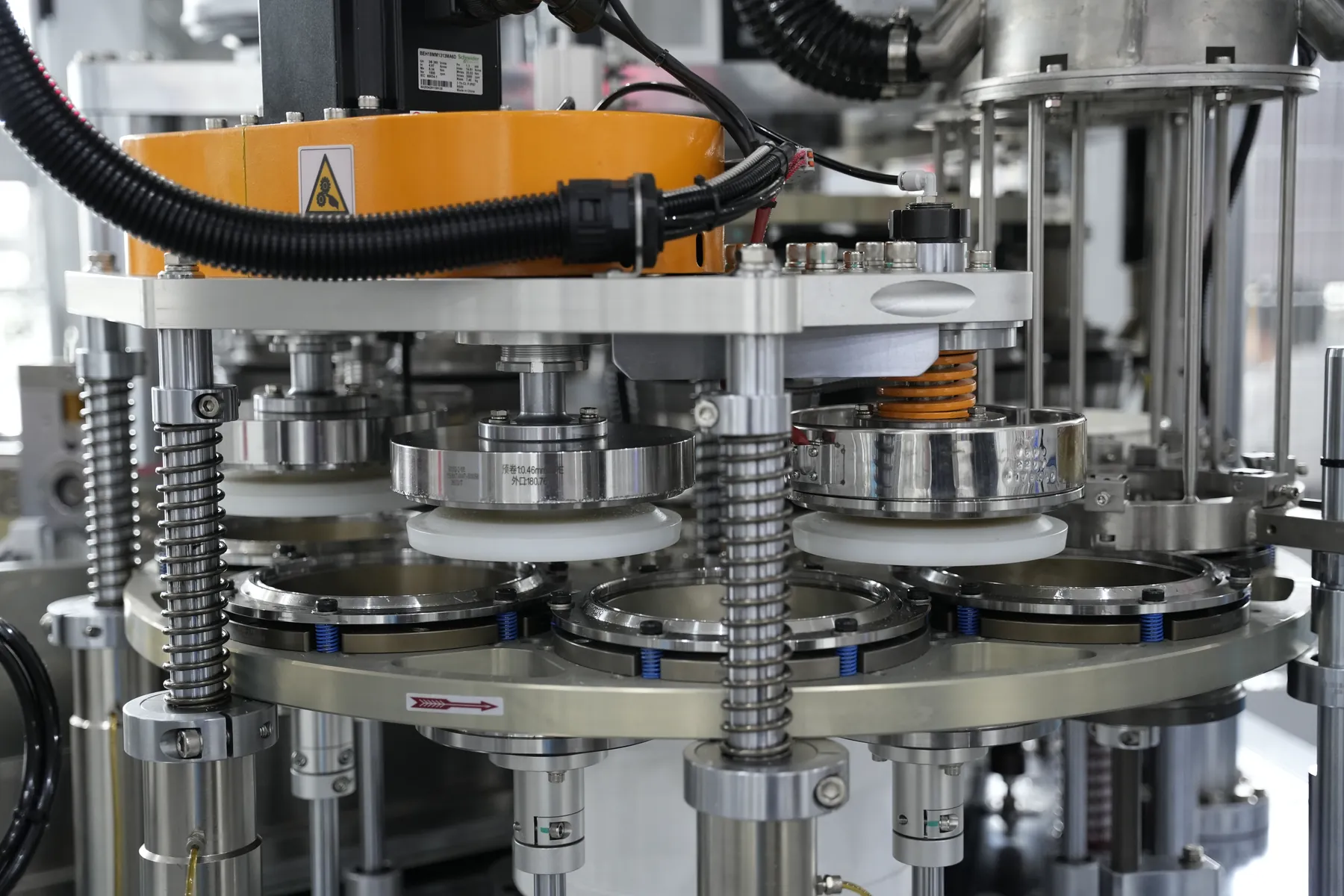

Servo-driven two-station pre-curl + final-curl rim mechanism: Guarantees constant rim dimensions and perfect curling lines.

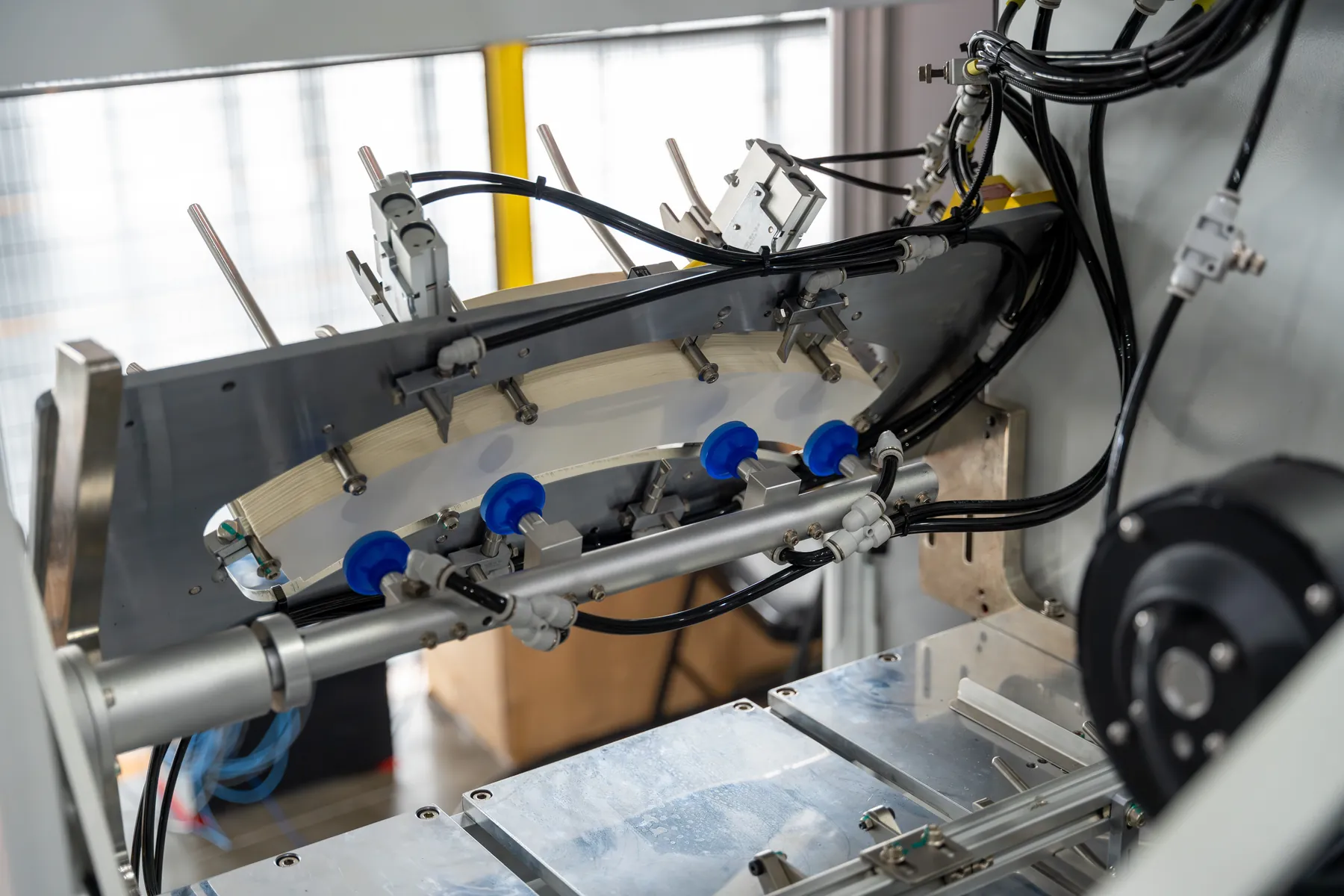

Motion-control PLC + encoders with full-process photoelectric tracking: Servo-fed bottom paper for higher stability and efficiency.

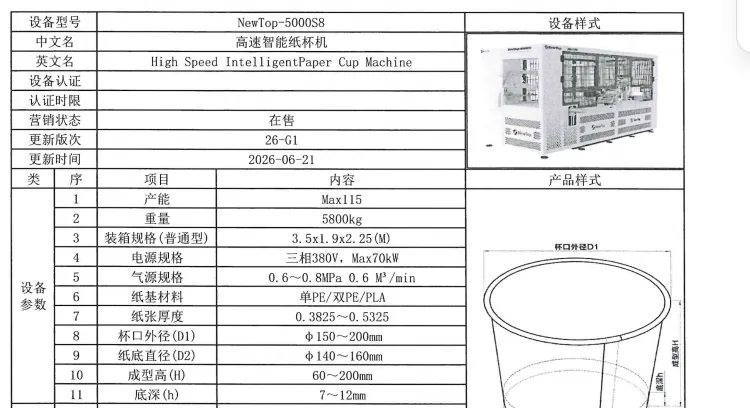

| Model | NEWTOP-5000S8 |
| Max Capacity | Max 115 pcs/min |
| Weight | 5800 kg |
| Machine encasement dimension | 3.5 x 1.9 x 2.25 m |
| Rated power | Three-phase 380V, Max 70kW |
| Compressed air | 0.6-0.8 MPa, 0.6 m³/min |
| Paper materials | Single PE / Double PE / PLA |
| Paper thickness | 0.3825-0.5325 mm |
| Production range | 30OZ ~ 170OZ |
| Bowl rim outer diameter (D1) | φ150-200 mm |
| Bottom diameter (D2) | φ140-160 mm |
| Forming height (H) | 60-200 mm |
| Bottom depth (h) | 7-12 mm |
