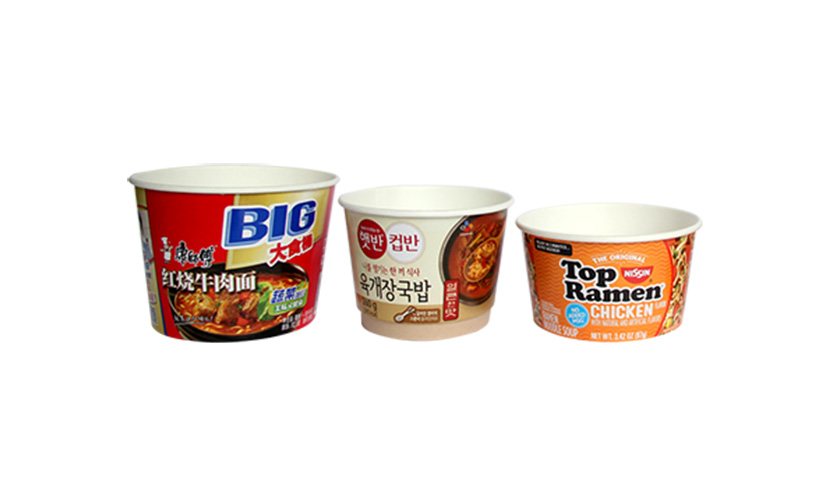

1. NEWTOP-228W horizontal type high speed intelligent paper bowl machine's max capacity is up to 180 pcs/min, suitable for the production of 11-43 ounces of cold/hot bowls.
2. NEWTOP-228W adopts a countertop integrated layout.
3. Mechanical parts are guaranteed for 5 years, electrical parts and vulnerable parts are guaranteed for 1 year.

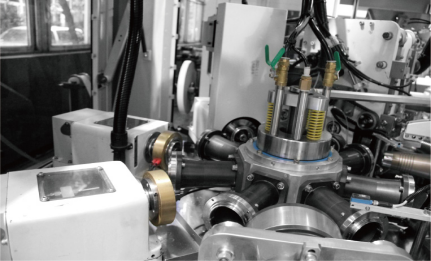

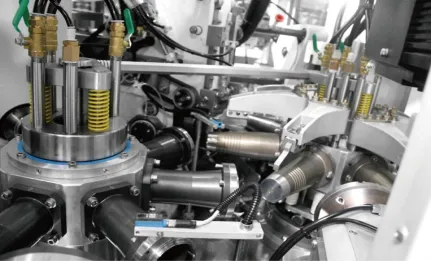

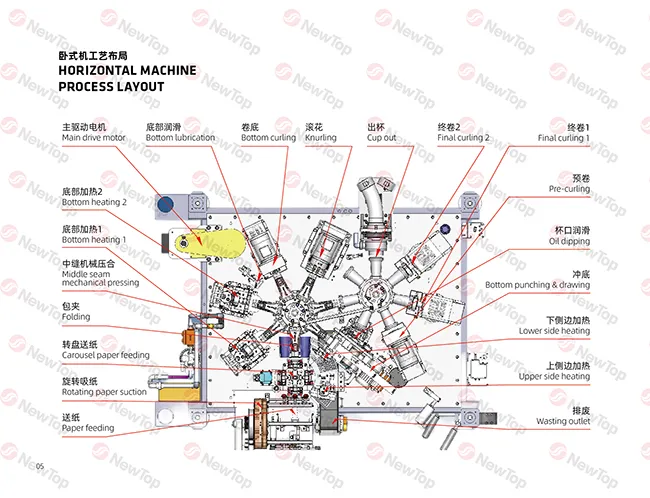

NEWTOP-228W horizontal high speed intelligent paper cup/bowl machine adopts integrated layout on upper-side and lower-side of the table.

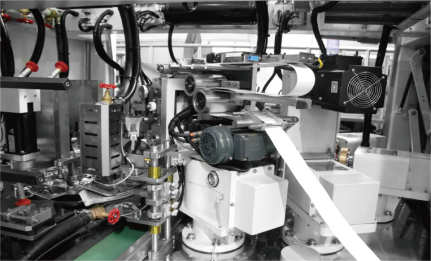

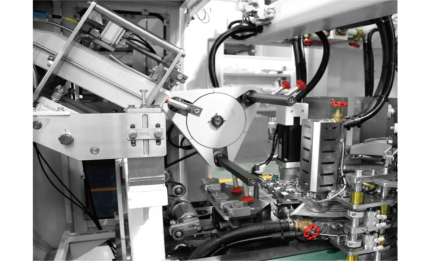

Using PLC control, with photoelectric sensors for monitoring, and servo feed: Achieve rapid, accurate and stable paper cup forming effect
NEWTOP-228W is suitable for making paper cups ranging from 11 to 43 ounces, and its production speed can reach 180 units per minute.
Equipped with the sixth-generation intelligent control system of New Debao and the navigation software operating system：IOT touch screen can be upgraded remotely with software to assist in equipment troubleshooting.
NEWTOP-228W HORIZONTAL High Speed Intelligent Paper Cup Machine
.webp)
.webp)
.webp)
| Model | NEWTOP-228W |
| Weight | 7500 kg |
| Machine encasement dimension | 3300 x 2140 x 2250mm |
| Rated power | Three-phase, 380V, 65KW |
| Compressed air | 0.5-0.7 MPa, 0.6 m³/min |
| Max Capacity | 180 pcs/min |
| Paper materials | Single PE / double PE / PLA |
| Paper thickness | 0.295-0.47mm |

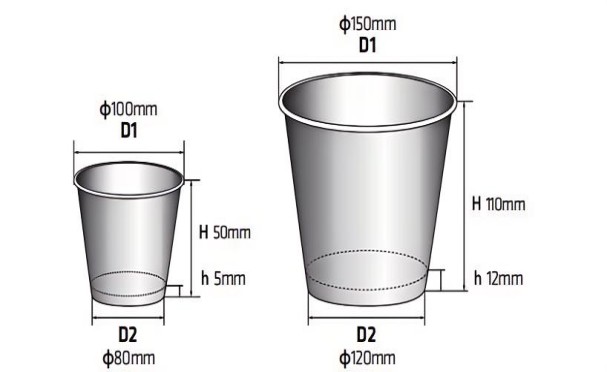

| Product range | (D1) φ100-150mm (H)50-110mm |
| (D2) φ80-120mm (h)5-12mm |
| Grease Lubrication |  |
Automatic |
| Hot Air Generator |  |
Bottom |
| Hot Air Generator |  |
Broadside |
| Paper Cup Lubrication |  |
Cup bottomlubr ication |
| Feeding section |  |
Paper conveyor1 |
| Airborne detection |  |
Collect table |
| Piping |  |
Single line pipeline |
2.5oz-10oz Paper Cup Size
158 pcs/min Max Capacity
16oz-42oz Paper Bowl Size
140pcs/min Max Capatcity
12oz-45oz Paper Bowl Size
120 pcs/min Max Capacity
