1. NEWTOP-118CDT type Double Wall Paper Cup Machine’s max capacity is up to150pcs/min, suitable for the production of 8-44 ounces of cold/hot cups.
2. Implemented isolation design between transmission and mold.
3. Mechanical parts are guaranteed for 5 years, electrical parts and vulnerable parts are guaranteed for 1 year.
Adopting an open, intermittent segmented design, gear transmission, and longitudinal axis design:
thereby enabling the rational allocation of the functions of each component.

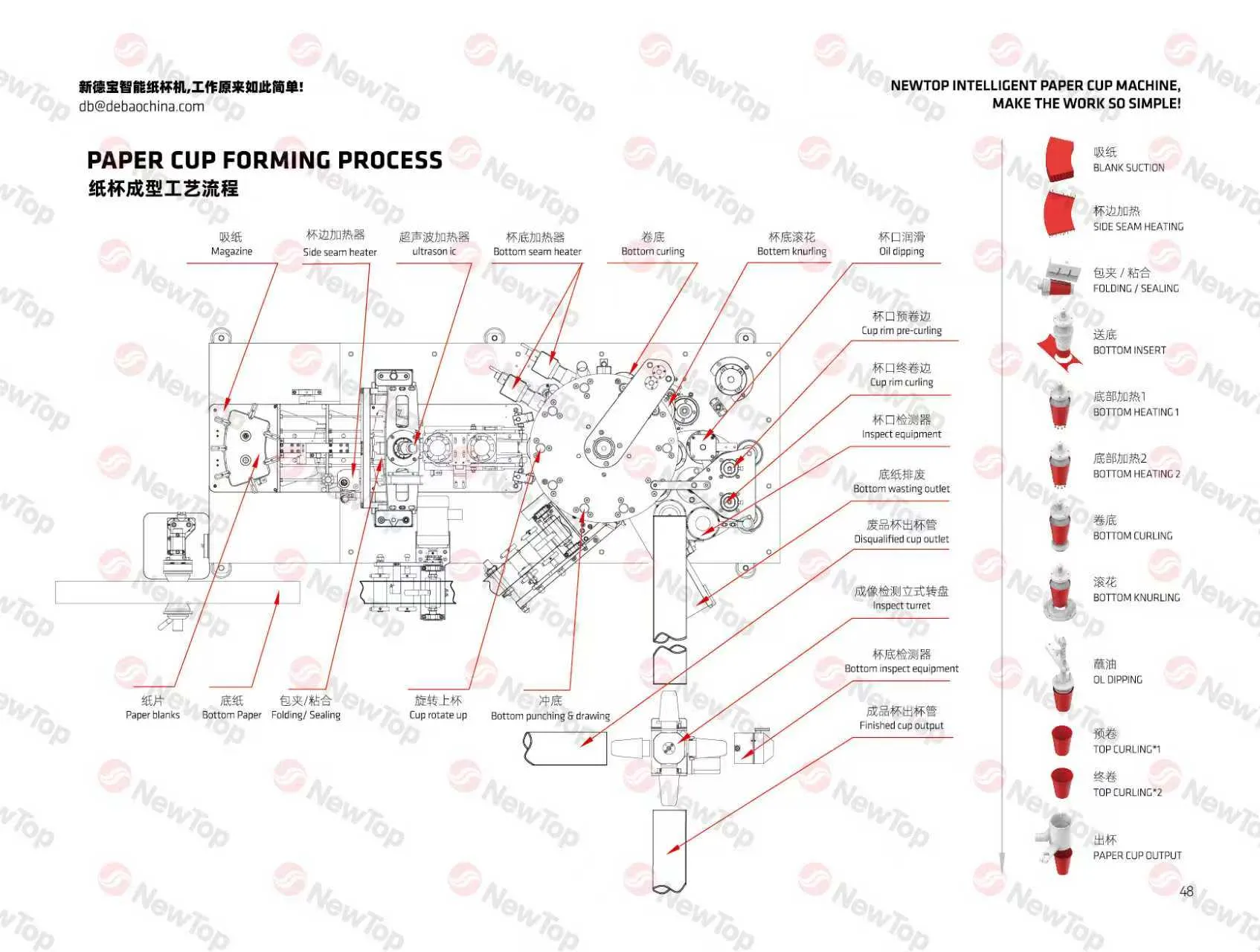

The PLC system controls the entire cup-forming process: ensuring efficient and precise operation.
NEWTOP-118CDT adopts an optical fault detection system and servo-controlled feeding: this ensures rapid and stable operation.
NEWTOP-118CDT maximum speed can reach 150 pieces per minute, suitable for the production of 8 - 44 ounces cup molds. It is widely used in milk tea cups, coffee cups, ripple cups, noodle bowls, etc.
.webp)
.webp)
| Model | NEWTOP-118CDT |
| Weight | 2600kg |
| Machine encasement dimension | 2800x1300x2250mm |
| Rated power | Three-phase,380v 5Kw |
| compressed air | 0.6-0.8MPa,0.4m³/min |

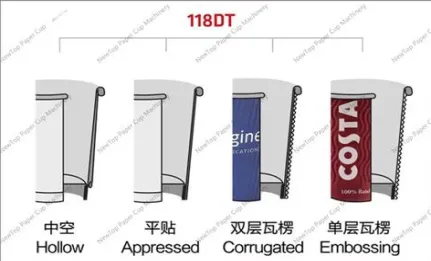

| Max Capacity | Hollow/Appressed:150pcs/min |
| Corrugated:100pcs/min | |

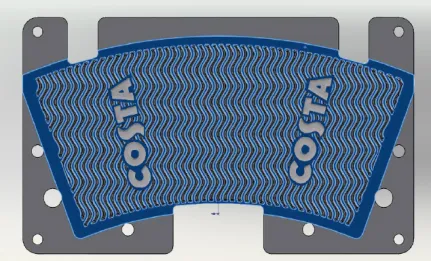

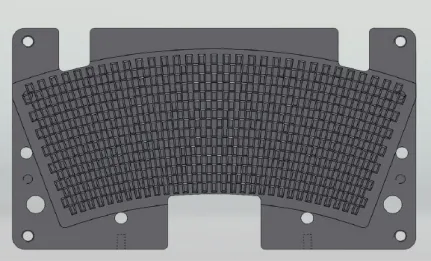

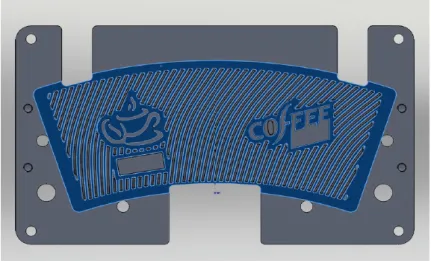

| Embossed:80pcs/min | |
| Paper materials | Gray board/White board/Embossed |
| Paper thickness | 0.2825-0.4075mm |
| Product range | (D1)φ70-95mm(H)60-135mm |
| (D2)p50-75mm(h)5-12mm(sleeve height) |
32oz-44oz Paper Bowl Size
150pcs/min Max Capatcity
8oz-44oz Paper Cup Size
120pcs/min Max Capacity
6-18oz Paper Cup Size
150pcs/min Max Capacity
