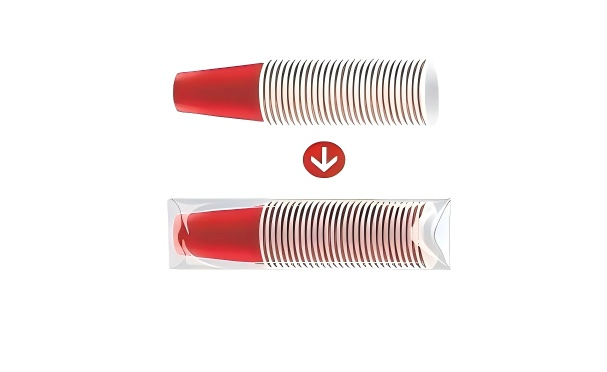

NEWTOP-DXD110/150 automatic paper cup/bowl packing machine have functions of automatic film feeding, playing vents, color tracking, single and double row packaging. it can be online with multiple (up to 2) paper cup machines as automatic production line.
Can be linked with two paper cup machines for fully automatic production.
For paper cups&bowls
15/12 bags/min Packing speed
NEWTOP-DXD110/150 model can be connected to two sets of paper cup machines to achieve fully automatic production.
When connected to the paper cup machine, the NEWTOP-DXD110/150 can also operate independently. Its shutdown operation will not affect the operation of the paper cup machine!
NEWTOP-DXD110/150 automatically adjusts the length of the film feed according to the size of the paper cup opening.
NEWTOP-DXD110/150 integrates functions such as automatic feeding, sealing, sorting and exhaust.
| Model | NEWTOP-DXD110/150 |
| Weight | 1400 kg |
| Machine encasement dimension | 2400 x 1700 x 2000mm（主机） |
| Rated power | Double-phase, 220V, 5.5KW |
| Compressed air | 0.5～0.7MPa, 0.3 m3/min |
| Packing speed | 15/12 bags/min |
| Plastic film material | HDPE / LDPE |
| Packing film thickness | 15um-50um |
| Stacking height | 250-650mm |
| Packing diameter | ф 55-70mm, ф 70-110mm, ф 110-150mm |
60pcs/min Max Capacity
300X200X400-500X400X700 Carton specifications
30Cartons/Hr Max Capacity
Ø60 - Ø120mm Paper specifications
120pcs/min Max Capacity
New Debao people pursue the concept of high quality and technology leading.
By changing the working mode with intelligent paper cup machine to make the operation more and more simple.
