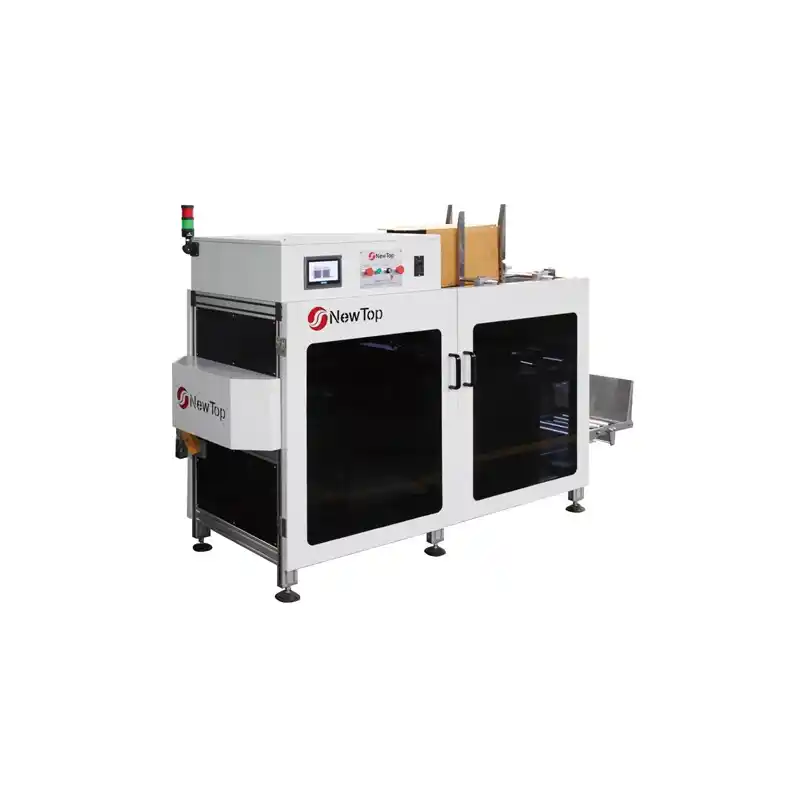

NEWTOP-DK500

Paper Cup Encasing Machine

1. NEWTOP-DK500 paper cup encasing machine is equipped with automatic paper cup feeding, cup bag quantity identification, carton feeding, and discharging functions.

2. It can be linked to up to 4 paper cup machines and 1 packing machine for a fully automated production line.

3. The machine features adjustable lifting to accommodate different paper cup diameters and carton sizes, ensuring versatility and efficiency.

4. Ideal for large-scale automation, streamlining the packaging process for paper cups.

5. Mechanical parts are guaranteed for 1 year, electrical parts and vulnerable parts are guaranteed for 1 year.

SUBMIT INQUIRY

Machine Highlights

The NEWTOP-DK500 can connect to up to four paper cup machines, providing seamless integration into an automated production line.

The machine’s lifting system automatically adjusts according to the diameter of the paper cup and carton size, making it highly adaptable for various production requirements.

This machine is perfect for automating the entire paper cup packaging process, improving efficiency and reducing manual labor.

Product information

Model	NEWTOP-DK500
Weight	550 kg
Machine encasement dimension	1800 x 1600 x 2000mm
Electrical specifications	Three-phase, 220V, 2KW
Air supply specifications	0.4MPa, 0.5m³/min
Max Capacity	30Cartons/Hr
Carton specifications	500 x 400 x 700
Paper specifications	Φ60-95mm(Cup)
Paper specifications	Φ95-150mm(Bowl)

Optional Equipment

Configuration of Host Accessories

Grease Lubrication		Hand Movement
Grease Lubrication		Automatic
Paper suction mechanism		Paper suction mechanism
Ultrasonic		Ultrasonic
Ultrasonicdrive Servo		Ultrasonicdrive Servo
Bottom paper code		Detection
Bottom paper code		Marking
Hot Air Generator		Bottom
Hot Air Generator		Broadside
Paper Cup Lubrication		Cup bottomlubr ication

Optional Jacket Host

Single watt		Single watt
Side hot glue		Side hot glue
Cup bottomlubr ication		Cup bottomlubr ication

Online Switching

Feeding section		Paper conveyor1
Feeding section		Paper conveyor2
Airborne detection		Dual camera
Airborne detection		Single camera
Airborne detection		Horizontal in-line inspection
Airborne detection		Collect table
Airborne detection		Multiplestacked collecttable
Airborne detection		Packaging mechanism cupmachine
Coat online section		Transfer stacker
Coat online section		2in1 stacker
Coat online section		Conveyor frame
Coat online section		Rotation mechanism
Piping		Single line pipeline
Piping		Branch tee
