1. Equipped with 12 industrial cameras covering rim, inner wall, bottom and outer wall for full-surface inspection.
2. Unsupervised AI algorithm detects stains, burst rims, bottom collapse and embossing flaws without manual labeling.
3. Up to 160 cups/min, suitable for 7OZ-16OZ regular paper cups; standalone frame connects to various forming lines.

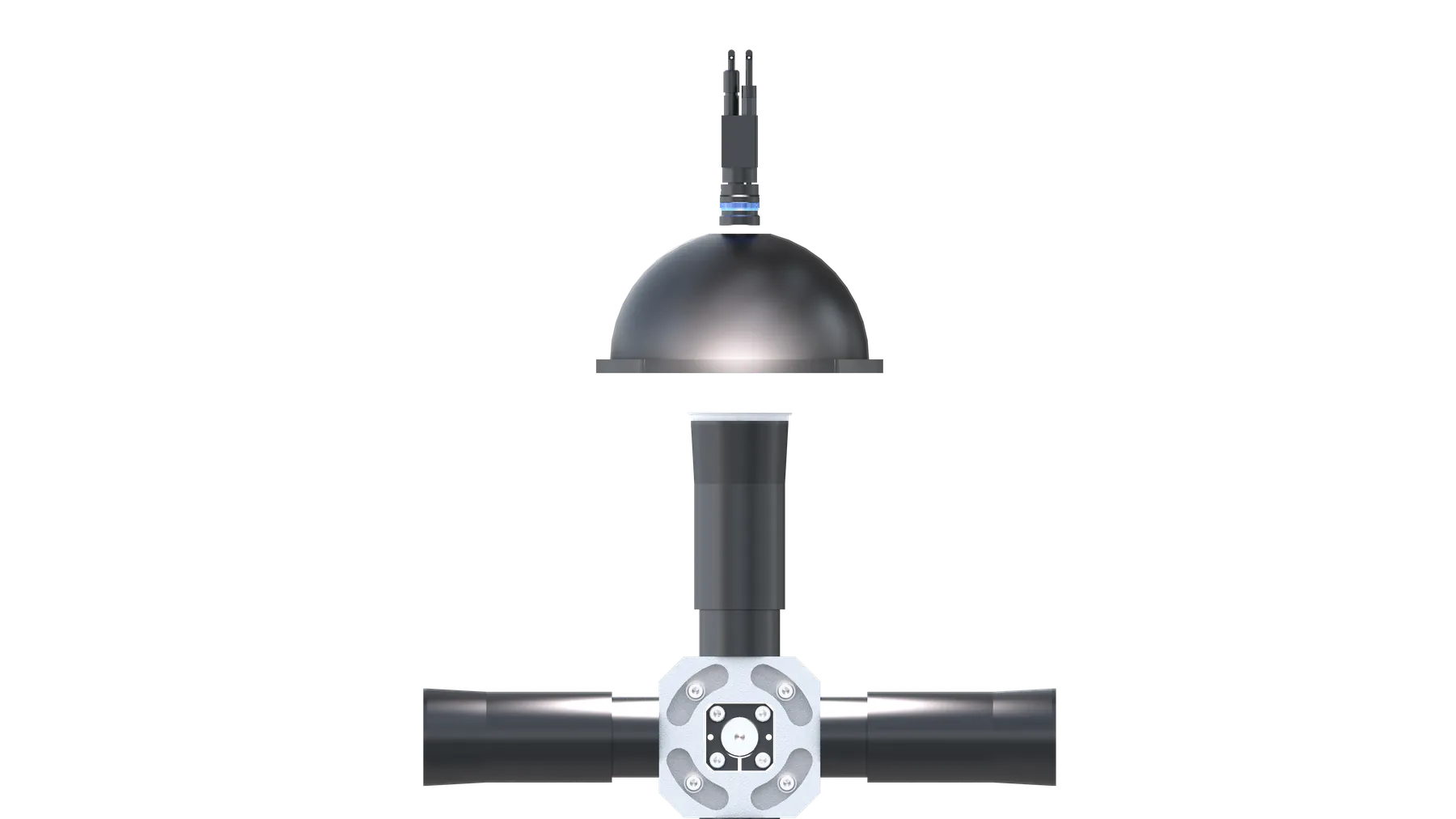

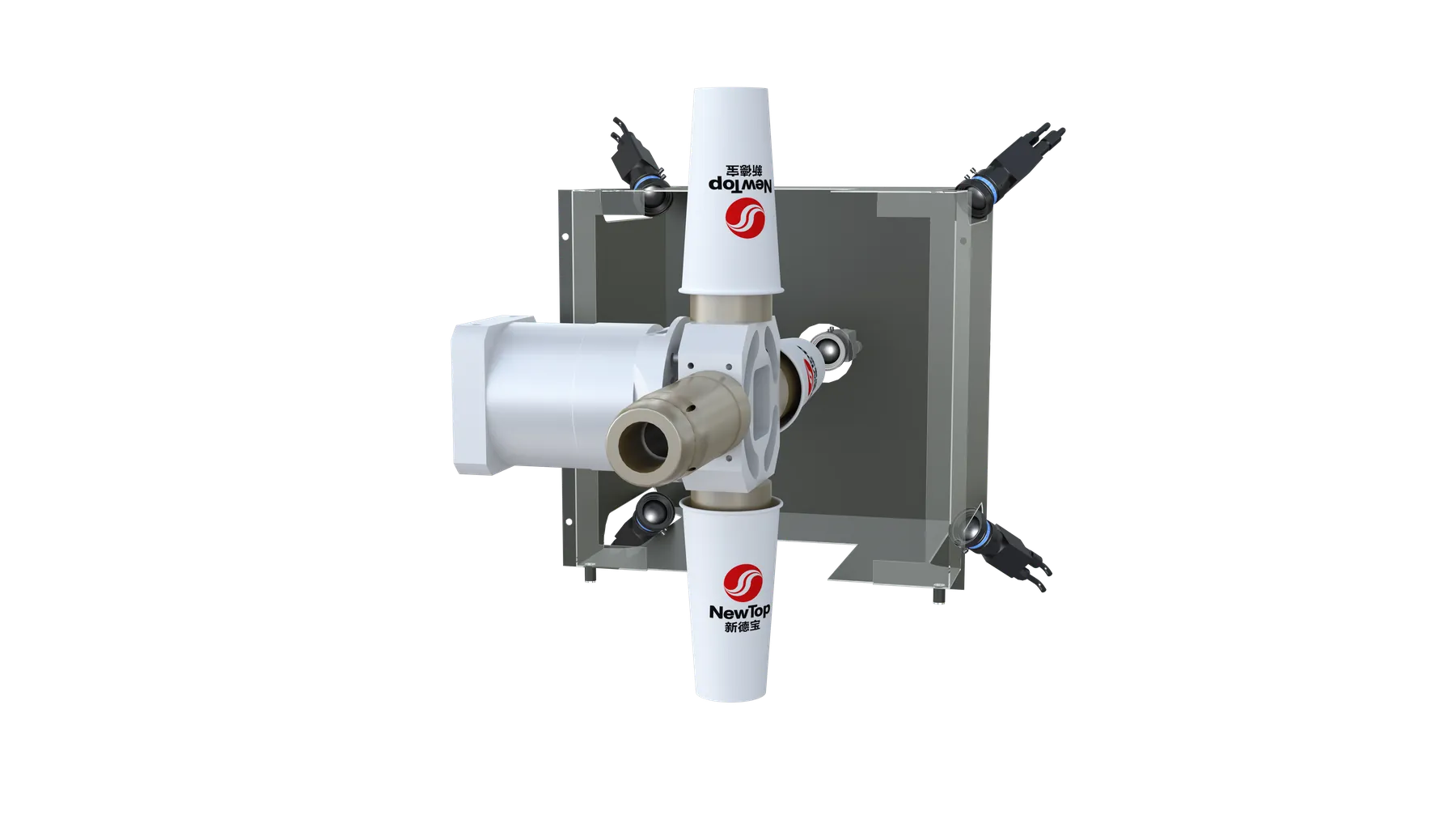

12 industrial cameras: Full coverage of rim, inner wall, bottom and outer wall with no blind spots.

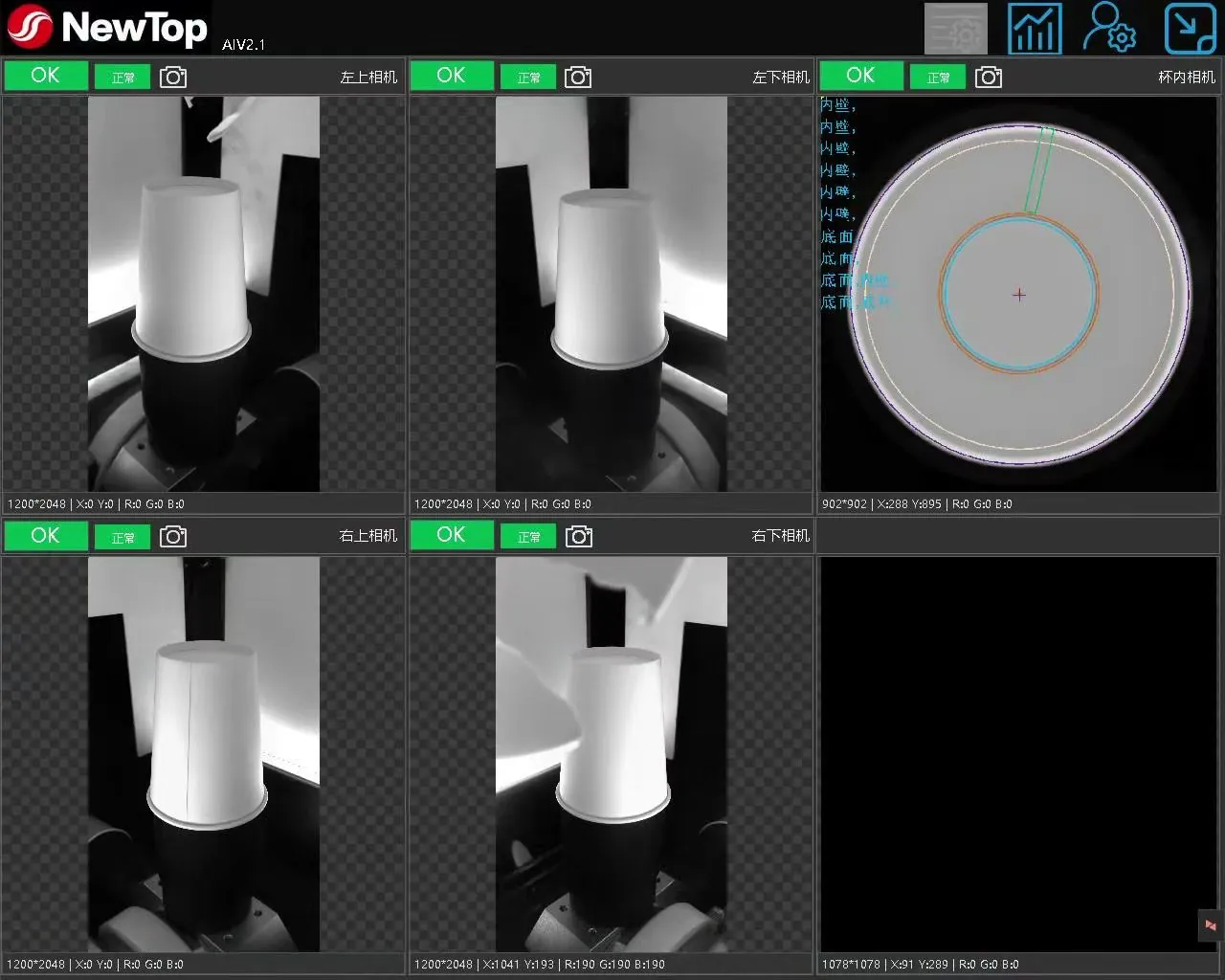

Unsupervised AI algorithm: Requires no manual labeling, automatically learns normal samples and detects defects.
High-speed online inspection: Up to 160 cups/min, seamlessly integrated into existing forming lines.
Automatic rejection and data retention: Auto-rejects defective cups and logs inspection data for traceability.

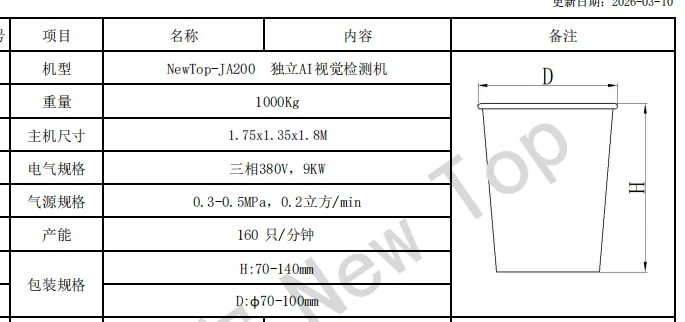

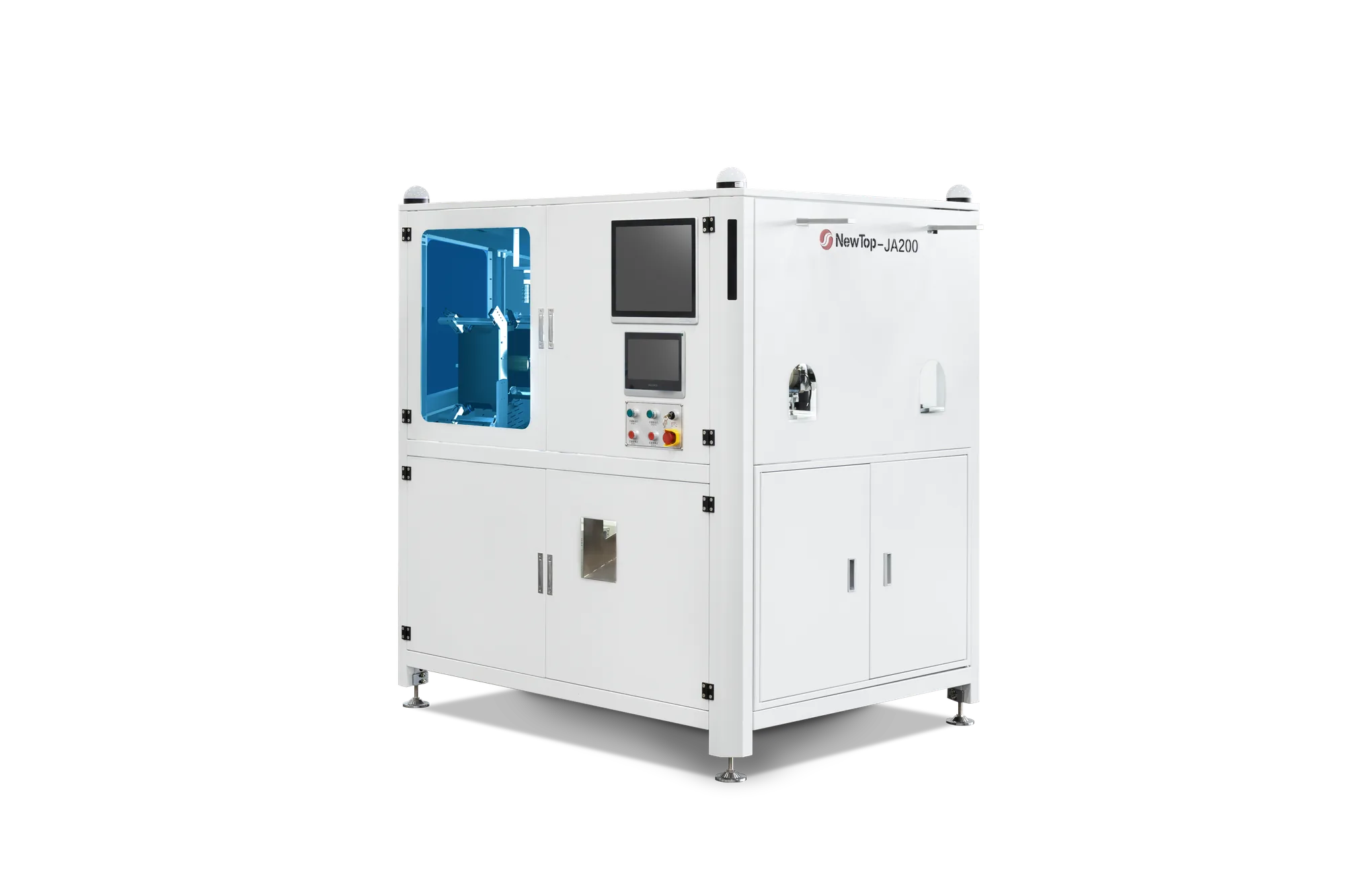

| Model | NewTop-JA200 |
| Type | Standalone AI Vision Inspection Machine |
| Cameras | 12 industrial cameras |
| Max Capacity | 160 pcs/min |
| Weight | 1000 kg |
| Main machine dimension | 1.75 x 1.35 x 1.8 m |
| Electrical specification | Three-phase 380V, 9KW |
| Compressed air | 0.3-0.5 MPa, 0.2 m³/min |
| Applicable cup height (H) | 70-140 mm |
| Applicable cup diameter (D) | φ70-100 mm |
| Applicable cup range | 7OZ - 16OZ |
60pcs/min Max Capacity
30pcs/min Max Capacity
500 x 400 x 700 Carton specifications
For paper cups&bowls
15 bags/min Packing speed
