1. NEWTOP-5000D middle speed intelligent large paper cup machine is using tabletop layout, which isolates the forming parts and the transmission parts.
2. Implemented isolation design between transmission and mold.
3. Mechanical parts are guaranteed for 3 years, electrical parts and vulnerable parts are guaranteed for 1 year.
Adopting a desktop layout: conducive to cleaning and maintenance

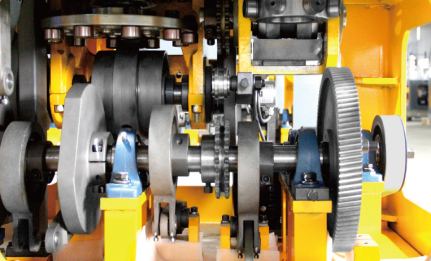

The transmission components are located beneath the table frame at the bottom of the machine body and have an automatic oil injection lubrication function.

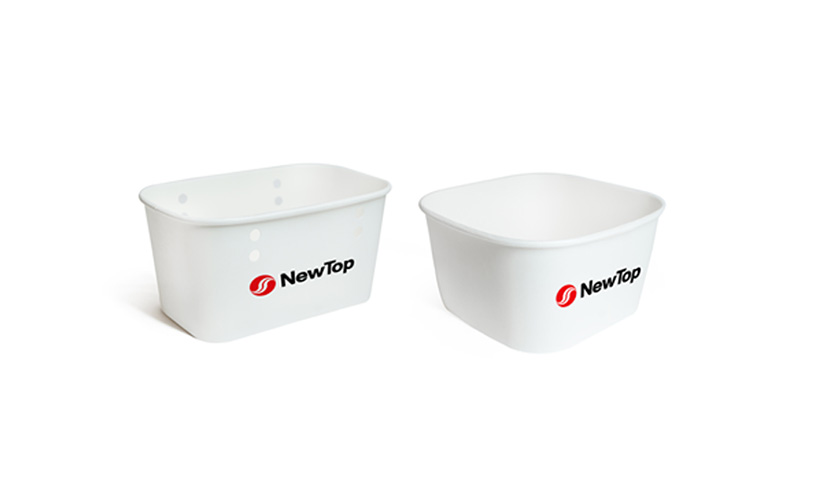

The NEWTOP-5000D dove chocolate oval bowl making bowl machine used for Dove chocolate packaging can reach a maximum speed of 60 pcs/min during production.

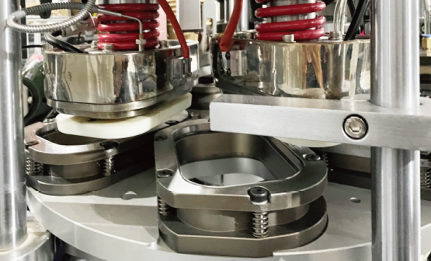

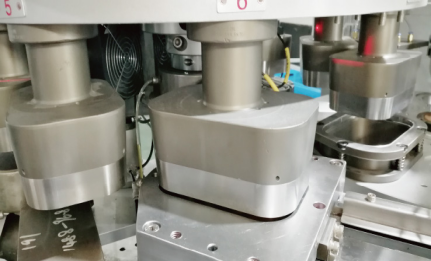

The machine adopts a longitudinal shaft transmission structure, a cylindrical indexing mechanism and gear transmission to ensure the service life and stability of the entire machine. The worktable is equipped with molds: to ensure product quality and hygiene.
NEWTOP-5000D :Customer's Factory Square Paper Bowl Production Line In South Korea
.webp)
.webp)
.webp)
| Model | NEWTOP-5000D |
| Weight | 4600kg |
| Machine encasement dimension | 3500 x 1800 x 2250mm |
| Cup counter encasement dimension | 1230 x 720 x 1900mm |
| Rated power | Three-phase, 380V, 35KW |
| Compressed air | 0.6-0.8MPa, 0.6 m3/min |
| Max Capacity | 60pcs/min |
| Paper materials | Single PE / double PE / PLA |
| Paper thickness | 0.38-0.5mm |

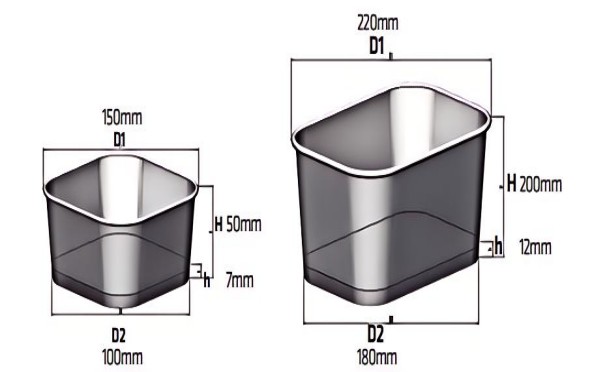

| Product range | (D1)φ175-220mm (H)50-130mm |
| (D2)φ155-180mm (h)7-10mm | |
| Product range | (D1)φ150-200mm (H)60-200mm |
| (D2)φ100-160mm (h)7-12mm |
| Grease Lubrication |  |
Hand Movement11 |

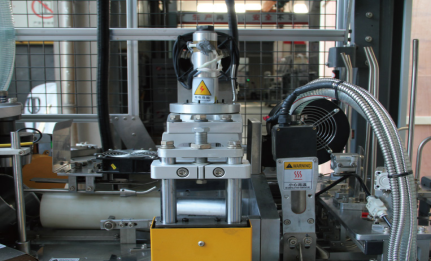

| Ultrasonic |  |
Ultrasonic |
| Hot Air Generator |  |
Bottom |
| Hot Air Generator |  |
Broadside |
| Paper Cup Lubrication |  |
Cup bottomlubr ication |
70pcs/min Max Capacity
For paper cups&bowls
15 bags/min Packing speed
300X200X400-500X400X700 Carton specifications
30Cartons/Hr Max Capacity
New Debao people pursue the concept of high quality and technology leading.
By changing the working mode with intelligent paper cup machine to make the operation more and more simple.
