1. NEWTOP-1250D type Servo Motor Paper Bowl Machine vmachine’s capacity of 70 pcs/ min and is suitable for the production of non-circular cold / hot bowls.Like a square or rectangle cold / hot bowl.
2. Implemented isolation design between transmission and mold.
3. Mechanical parts are guaranteed for 3 years, electrical parts and vulnerable parts are guaranteed for 1 year.

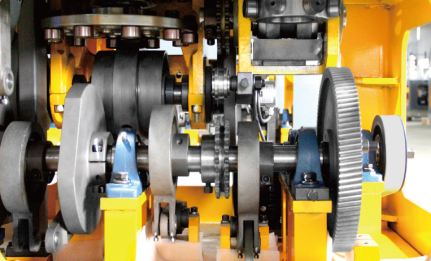

The NEWTOP-1250D high speed intelligent paper cup machine is using tabletop layout, which isolates the
forming parts and transmission parts. Alltransmission parts are installed in the main frame underthe table,
using longitudinal shaft, barrel indexing cam and gear transmission. The forming parts are installed on

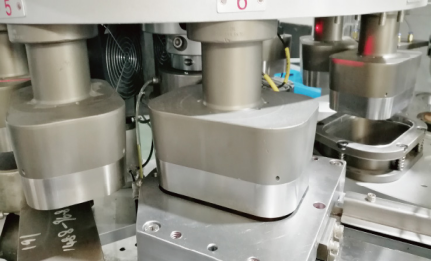

the table, easy to access for cleaning and maintenance. Machine. is controlled by PLC, the whole process is

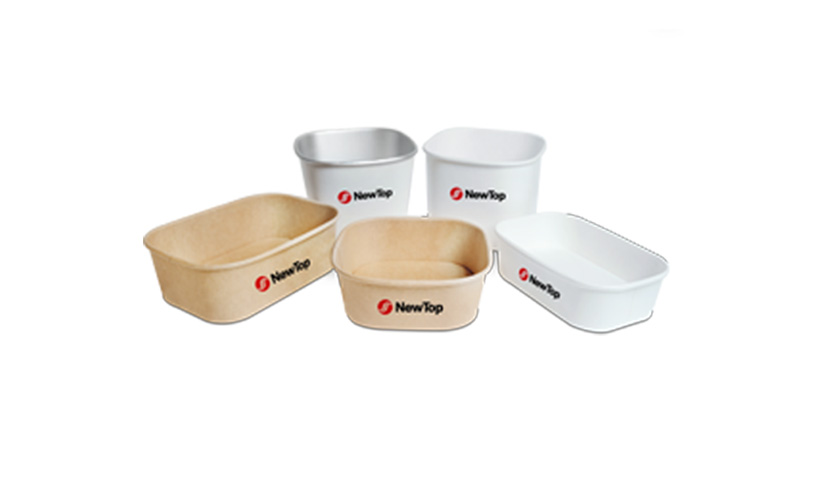

monitored by photoelectric sensors, feeding by servo. The NEWTOP-1250D is good for making non-round
type cold/hot bowls. Ractangle ones have eight standard sizes can be chosen from.
NEWTOP-1250D:High quality oval paper bowl making machine
.webp)
.webp)
.webp)
| Model | NEWTOP-1250D |
| Weight | 3400kg |
| Machine encasement dimension | 2850 x 1650 x 2250mm |
| Cup counter encasement dimension | 1230 x 720 x 1900mm |
| Rated power | Three-phase, 380V, 29KW |
| Compressed air | 0.6-0.8MPa, 0.6 m3/min |
| Max Capacity | 70pcs/min |
| Paper materials | Single PE / double PE / PLA |
| Paper thickness | 0.38-0.5mm |

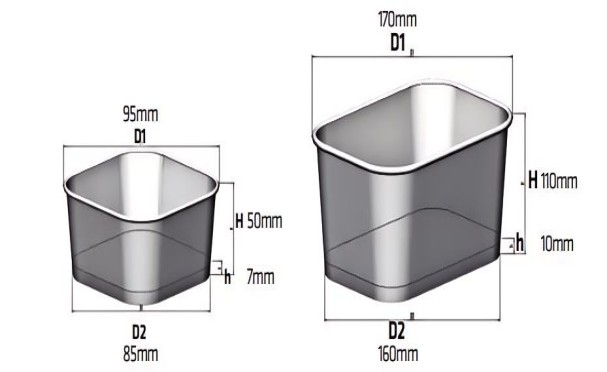

| Product range(square) | (D1)φ95-165mm (H)50-110mm |
| (D2)φ85-145mm (h)7-10mm | |
| Product range(rectangle ) | (D1)φ105-170mm (H)50-110mm |
| (D2)φ105-160mm (h)7-10mm |
| Grease Lubrication |  |
Automatic |

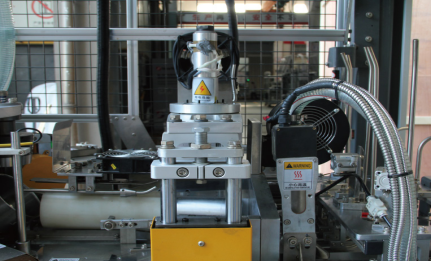

| Ultrasonic |  |
Ultrasonic |

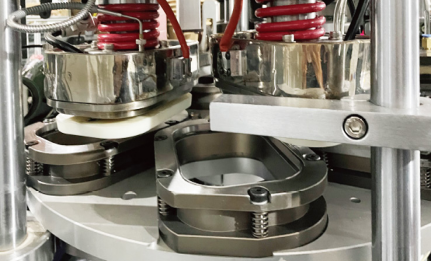

| Hot Air Generator |  |
Bottom |
| Hot Air Generator |  |
Broadside |
| Paper Cup Lubrication |  |
Cup bottomlubr ication |
