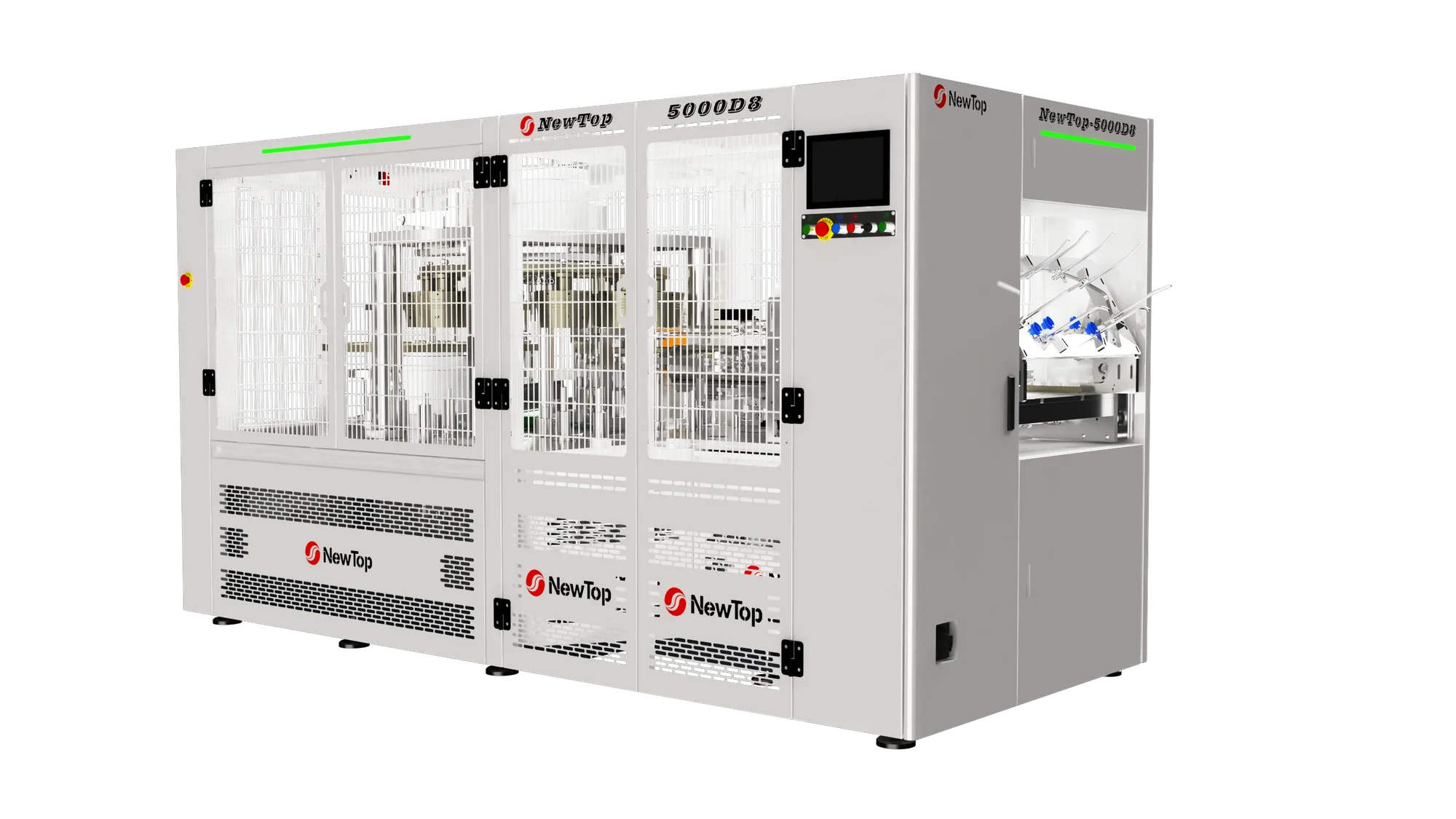

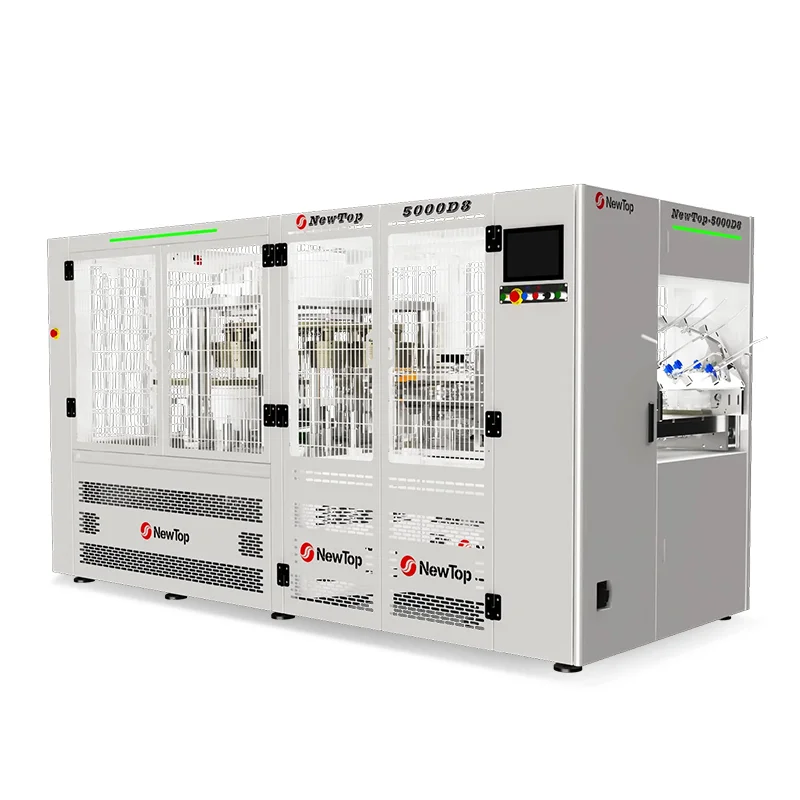

1. The NEWTOP-5000D8 high-speed intelligent paper container machine adopts a 4-axis distributed drive and servo ultrasonic sealing, suitable for high-speed forming of paper containers.
2. The 11-station bottom + 8-station rim dual-turntable layout realizes multi-process forming from blank sheet to finished cup.
3. Sheet-metal frame with mesh-door structure improves heat dissipation and operational safety; mechanical parts are easy to clean and maintain.
4-axis distributed drive design: Optional direct-drive motor or mechanical indexing for the turntable, balancing rigidity and flexibility.

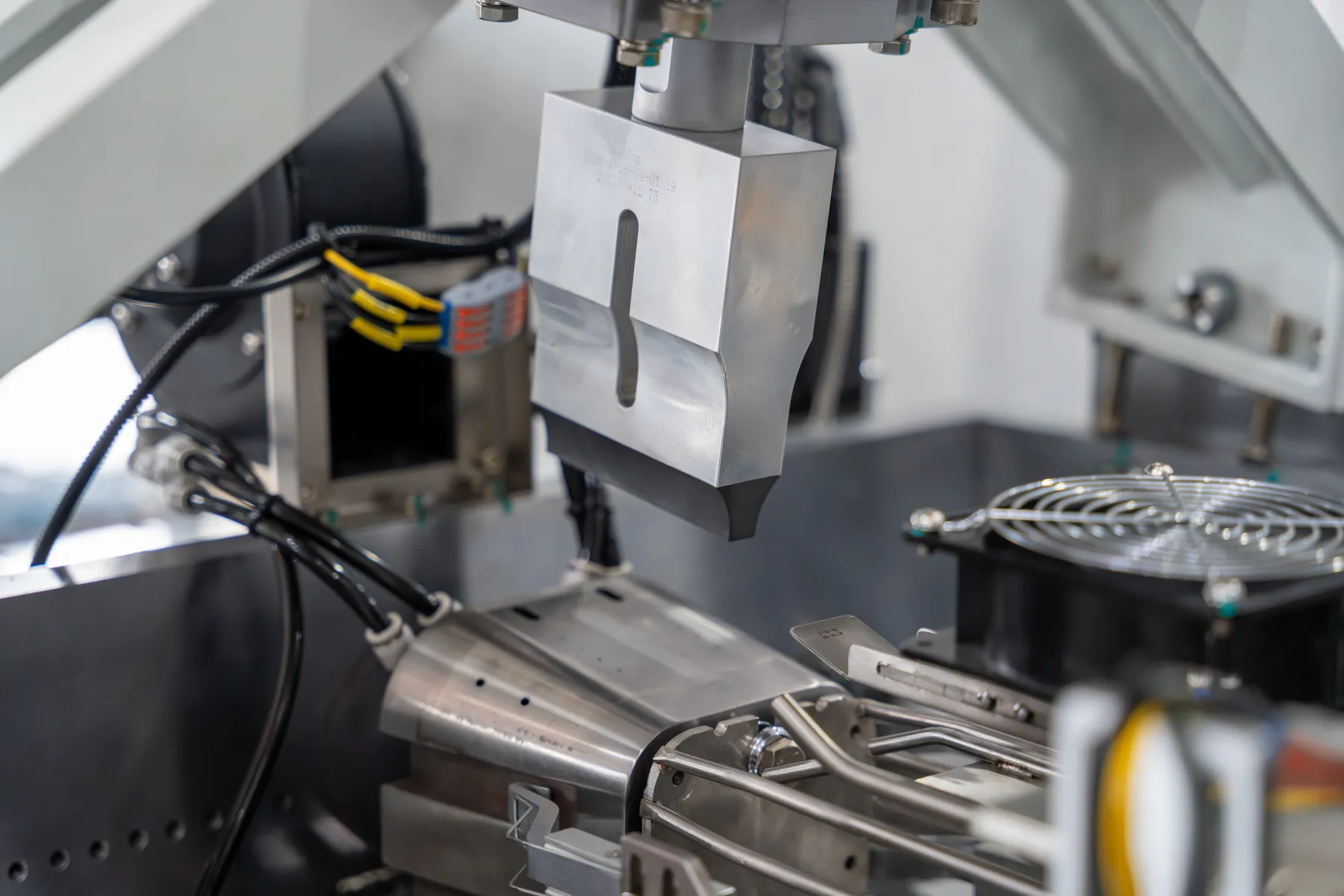

Servo-driven ultrasonic sealing and clamp-and-hold cup-body forming: Ensures stable, high-precision cup-body forming.

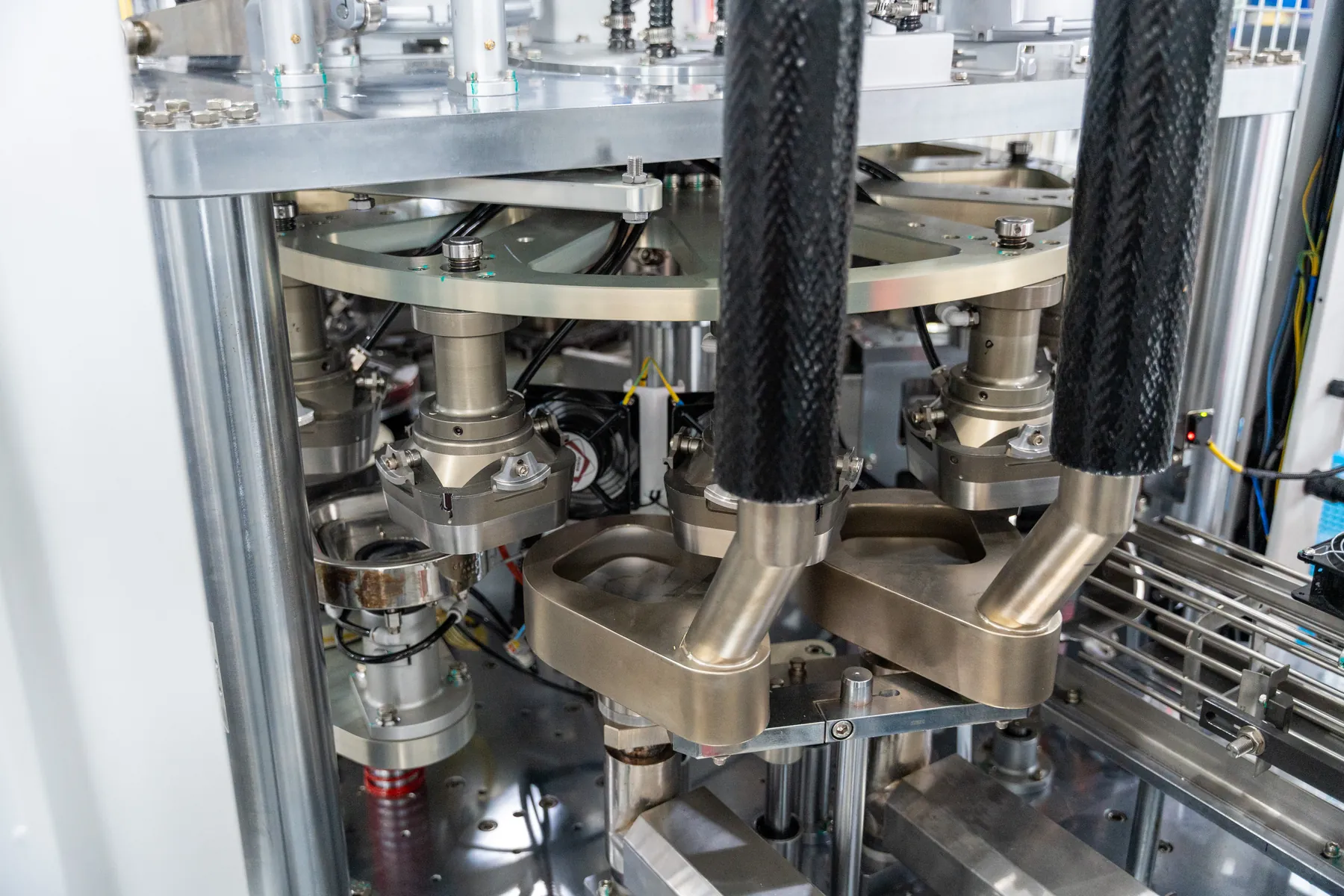

11-station bottom + 8-station rim dual-turntable: Realizes multi-process forming from blank sheet to finished container.

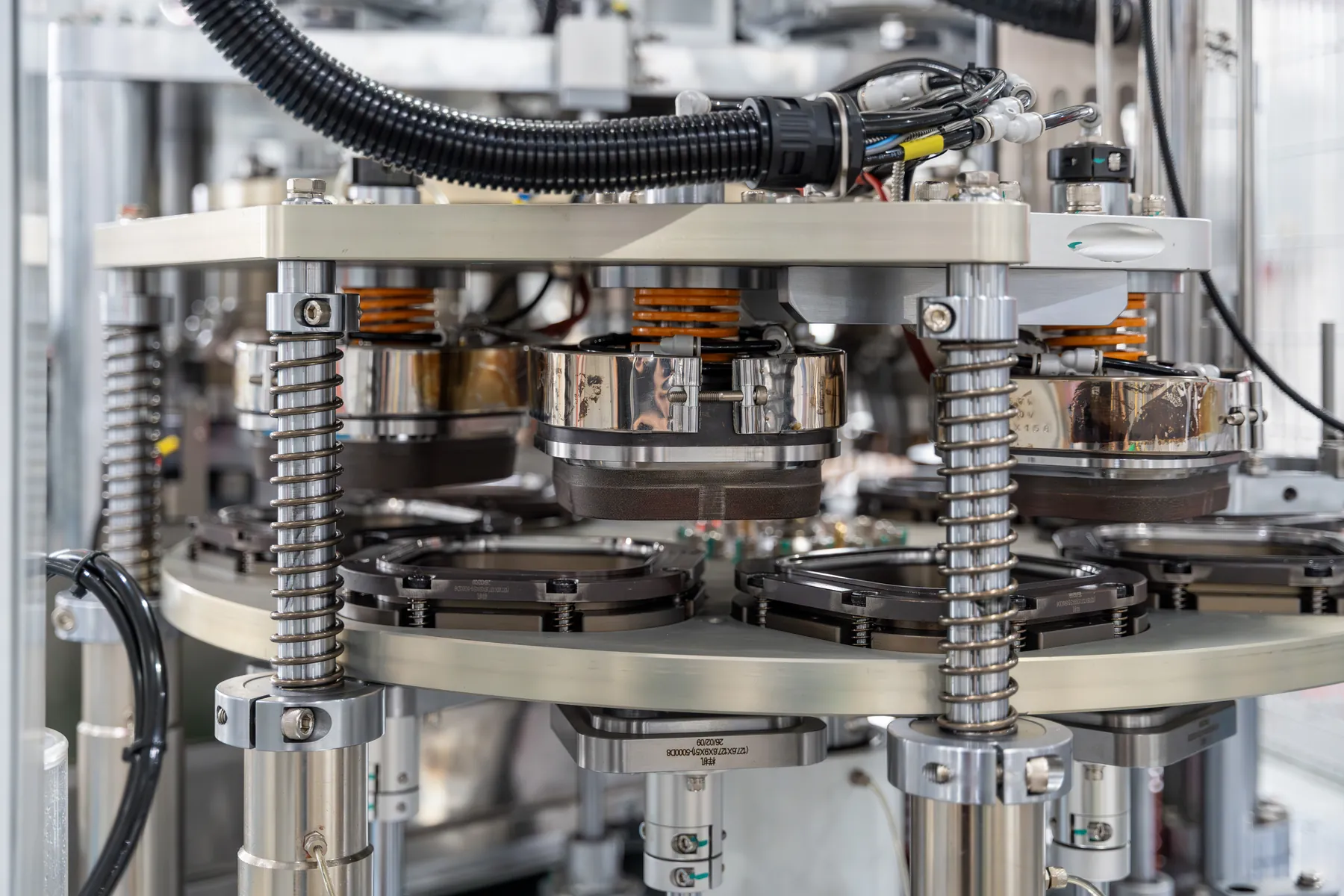

Two-station pre-curl + final-curl rim mechanism: Guarantees constant cup-rim dimensions and perfect curling lines.

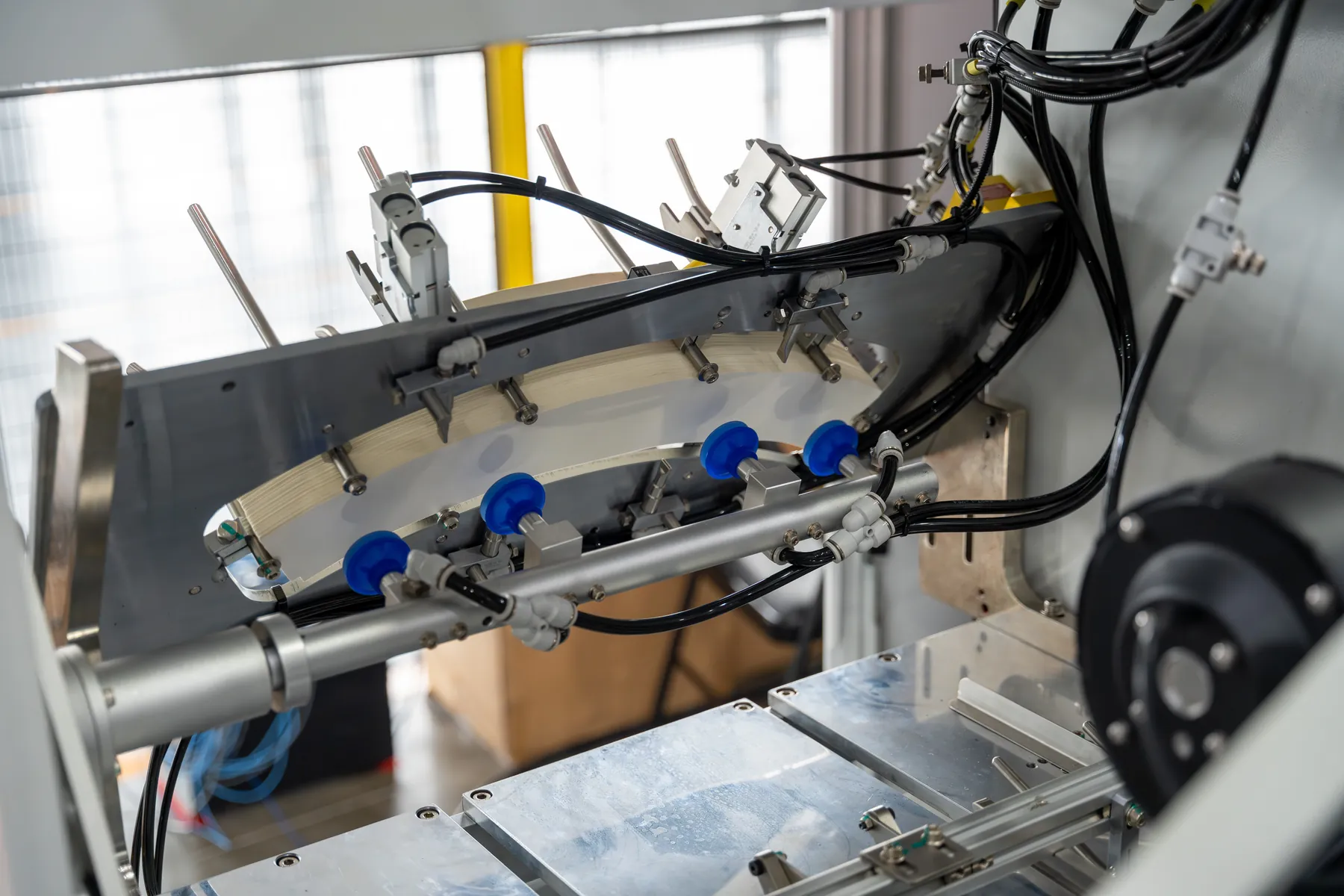

Motion-control PLC + encoders with full-process photoelectric tracking: Servo-fed bottom paper for higher stability and efficiency.

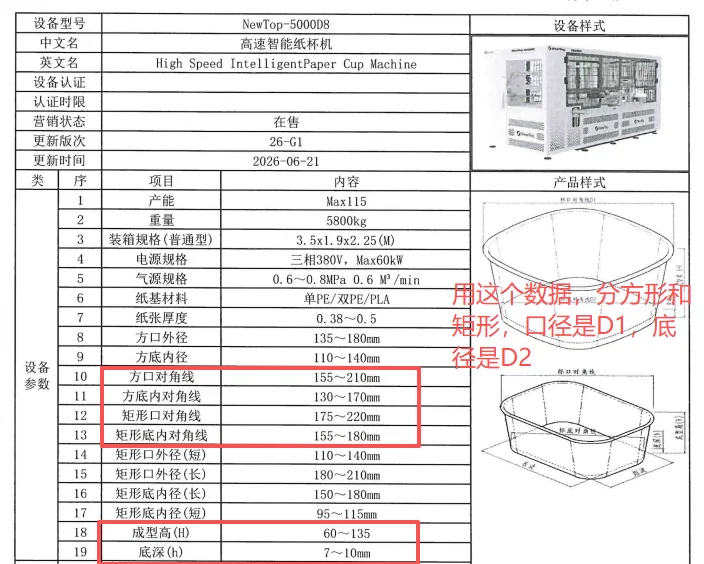

| Model | NEWTOP-5000D8 |
| Max Capacity | Max 115 pcs/min |
| Weight | 5800 kg |
| Machine encasement dimension | 3.5 x 1.9 x 2.25 m |
| Rated power | Three-phase 380V, Max 60kW |
| Compressed air | 0.6-0.8 MPa, 0.6 m³/min |
| Paper materials | Single PE / Double PE / PLA |
| Paper thickness | 0.38-0.5 mm |

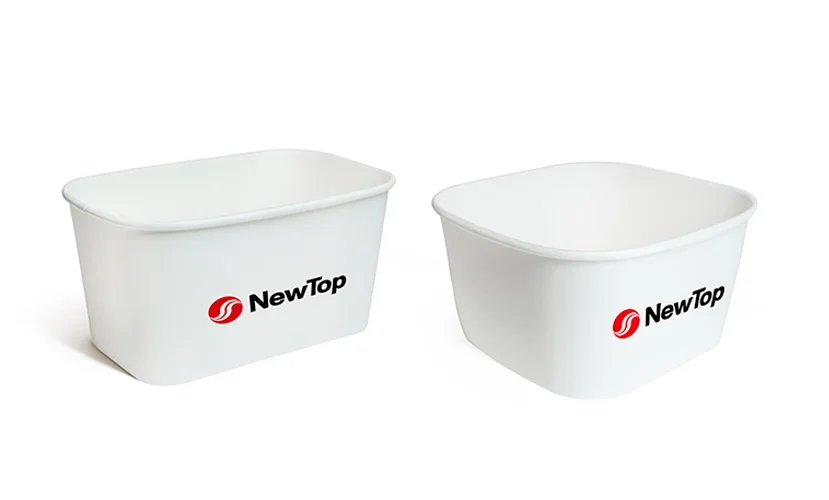

| Square rim outer diameter (D1) | 135-180 mm |
| Square bottom inner diameter (D2) | 110-140 mm |
| Square rim diagonal | 155-210 mm |
| Square bottom inner diagonal | 130-170 mm |
| Rectangular rim diagonal | 175-220 mm |
| Rectangular bottom inner diagonal | 155-180 mm |
| Rectangular rim outer diameter (short) | 110-140 mm |
| Rectangular rim outer diameter (long) | 180-210 mm |
| Rectangular bottom inner diameter (long) | 150-180 mm |
| Rectangular bottom inner diameter (short) | 95-115 mm |
| Forming height (H) | 60-135 mm |
| Bottom depth (h) | 7-10 mm |
