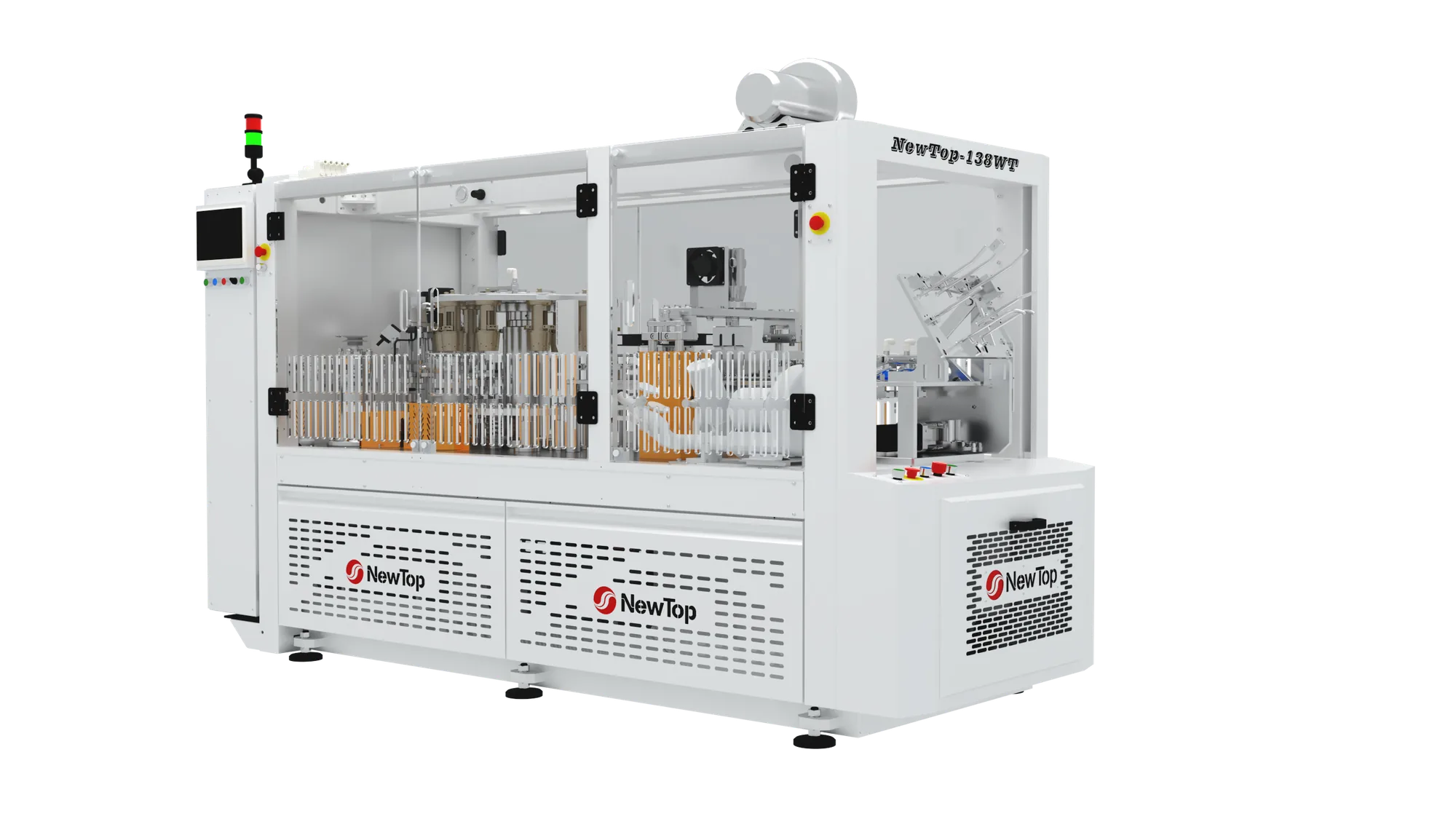

1. The NEWTOP-138WT high-speed sleeve machine applies sleeves automatically on paper cups and containers.
2. Servo-driven control ensures stable, precise sleeve placement.
3. Integrates with existing forming lines to improve packaging efficiency.
High Speed Sleeve Machine
Automatic sleeve application for cups and containers
Servo-driven control for precise operation
Stable, efficient continuous operation
| Model | NEWTOP-138WT |
| Category | High Speed Sleeve Machine |
| Certification | CE |
| Max Capacity | 160 pcs/min |
| Weight | 3300 kg |
| Machine encasement dimension | 3300 x 1600 x 2100 mm |
| Rated power | Three-phase 380V, 15KW |
| Compressed air | 0.6-0.8 MPa, 0.5 m3/min |
| Paper materials | White board / Grey board / Corrugated board |
| Paper thickness | 0.2825-0.445 mm |
| Cup rim outer diameter (D1) | φ60-95 mm |
| Forming height (H) | 60-170 mm |
| Bottom diameter (D2) | φ40-75 mm |
23oz-168oz Paper Bowl Size
80 pcs/min Max Capacity
32oz-44oz Paper Bowl Size
150pcs/min Max Capatcity
New Debao people pursue the concept of high quality and technology leading.
By changing the working mode with intelligent paper cup machine to make the operation more and more simple.
Fengzhai Natural Village,Wandu Village, Wanquan Town, Pingyang County, Zhejiang Province,China
