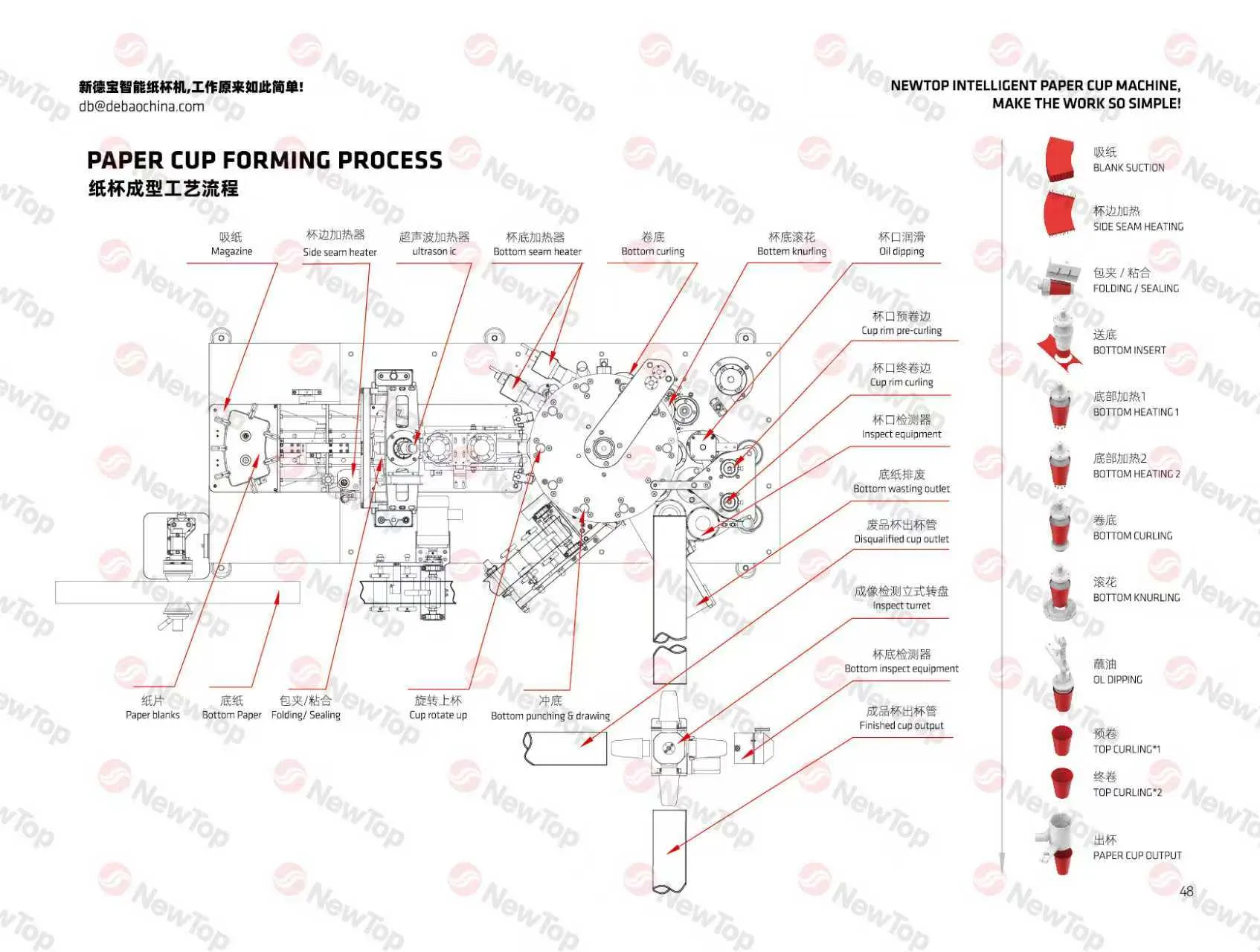

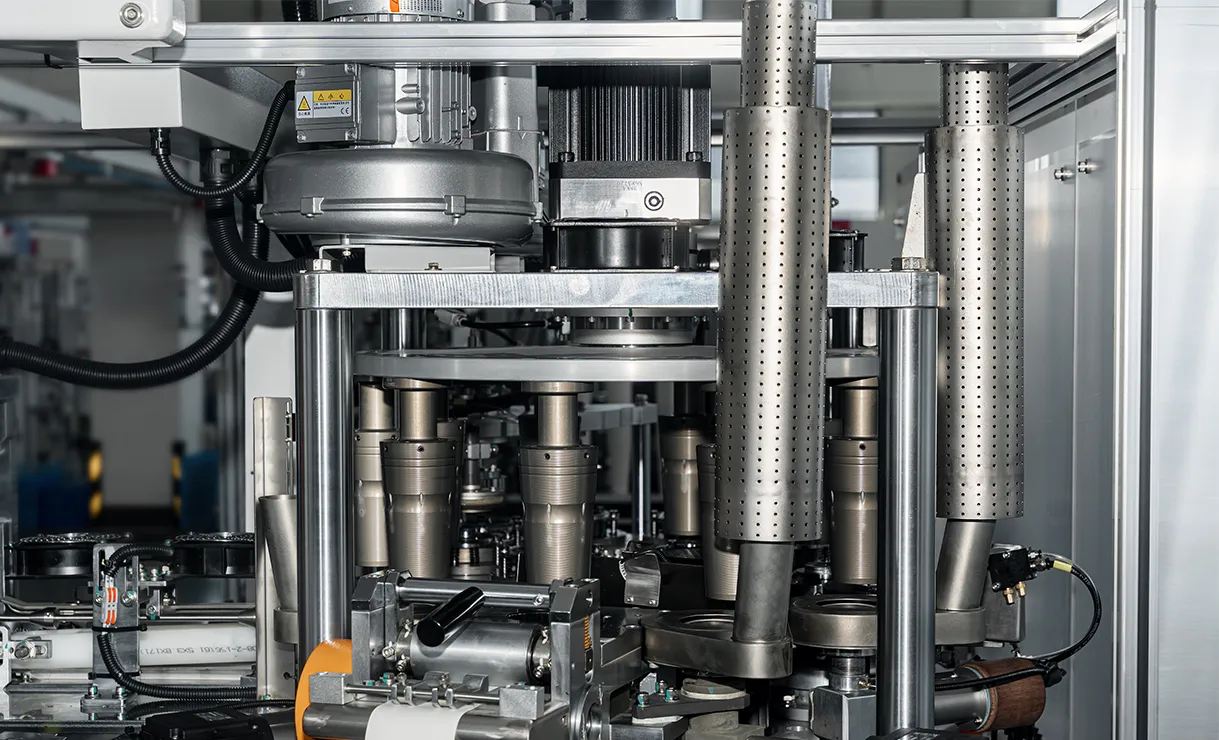

Dual-turntable forming process and full servo drive for high-speed, high-precision production

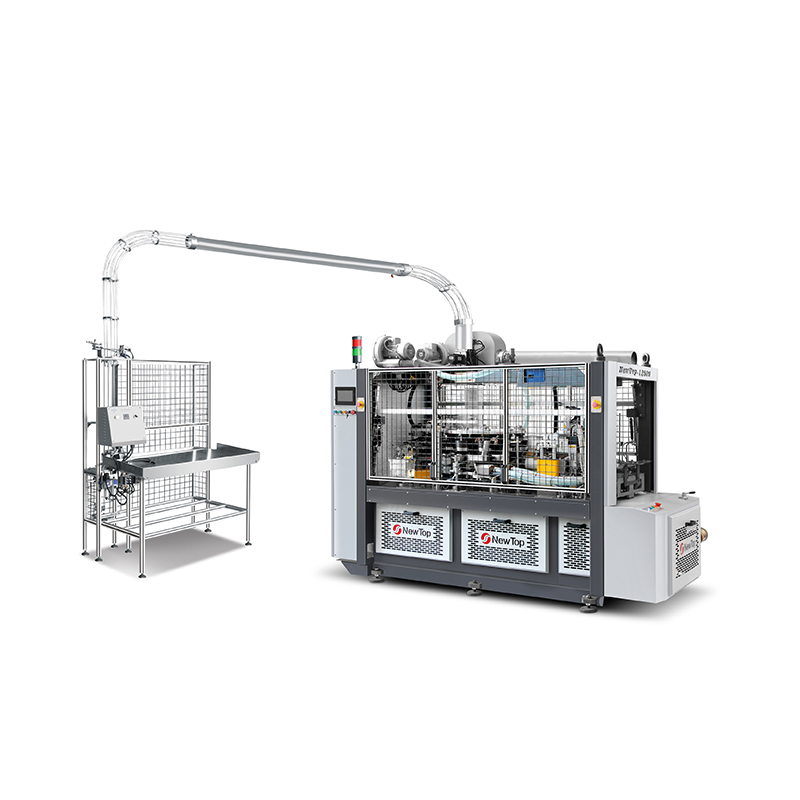

NEWTOP-FW125C servo paper cup machine is a new generation intelligent high-speed paper cup forming equipment
Dual-turntable forming process and full servo drive for high-speed, high-precision production
NEWTOP-FW125C servo paper cup machine is a new generation intelligent high-speed paper cup forming equipment
NEWTOP-FW125C features innovative desktop layout and servo drive structure, setting new standards for high-speed forming
This machine is designed for 16oz-42oz paper cup production with speed up to 140pcs/min. Utilizing EtherCAT high-speed bus communication technology, distributed clock mechanism, electronic cam technology and common DC bus solution to achieve high-precision control of the cup forming process through servo motors, ensuring fast, accurate and stable forming.
|
Model |
NEWTOP-FW125C |
|
Weight |
3200kg |
|
Machine encasement dimension |
2300x1900x2100mm |
|
Rated power |
380V，37KW |
|
Comnpressed air |
0.6-0.8MPa,0.5m3/min |
|
Max Capacity |
140pcs/min |
|
Paper materials |
SinglePE/DoublePE/PLA |
|
Paper thickness |
0.2825~0.5025mm |
|

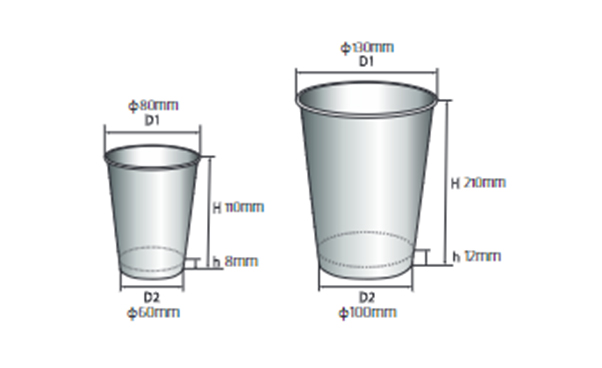

Product range |
(D1)Φ80~130mm(H)110~210mm (D2)Φ60~100mm (h)8~12mm |
11oz-43oz Paper Bowl Size
180 pcs/min Max Capacity
12oz-45oz Paper Bowl Size
120 pcs/min Max Capacity
10oz-45oz Paper Bowl Size
138 pcs/min Max Capacity
New Debao people pursue the concept of high quality and technology leading.
By changing the working mode with intelligent paper cup machine to make the operation more and more simple.
