Newtop Paper Cup Machine Production Process

In the highly competitive paper container packaging equipment industry, Newtop paper cup machines have won recognition from numerous customers for their efficient and stable performance as well as intelligent operation. To give you a clearer understanding of how Newtop equipment completes paper cup forming, the full production process is introduced below:

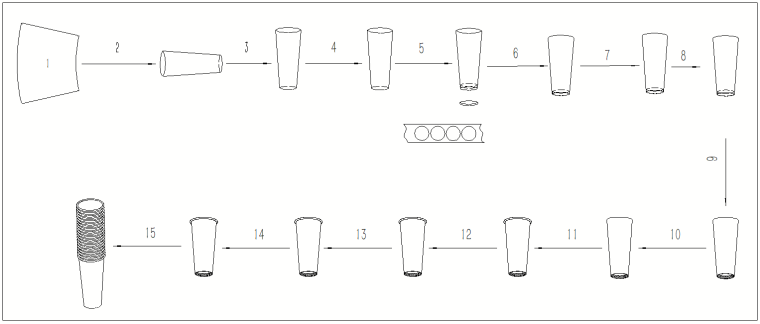

(Newtop vertical paper cup machine process diagram)

1. Paper blanks are neatly aligned and placed into the paper magazine.
2. The side-seam heated paper blank is wrapped around by cup clamps to form the cup body.
3. The ultrasonic horn presses the cup body seam, emits ultrasonic waves, and bonds it.
4. The bottom punching die cuts the bottom blank and places it into the bottom of the cup mold.
5. The cup body is turned over by a mechanical arm and sleeved onto the cup mold.
6. Bottom heating 1 for the cup bottom.
7. Bottom heating 2 for the cup bottom (Newtop paper cup machines have now been upgraded to three-stage hot air bottom heating).
8. Optional: bottom curling after applying white mineral oil.
9. Cup bottom knurling.
10. Cup rim pre-curling after oil application.
11. Cup rim final curling and heat setting.
12. * Cup rim and inner wall inspection.
13. * Cup bottom and outer wall inspection.
14. Finished cup ejection.
15. Qualified cup discharge.
16. * Unqualified cup discharge.

(Note: Steps 12, 13 and 16 are only available on paper cup machines equipped with cup rim and cup bottom inspection systems.)

Through precise control and continuous optimization of every production step, Newtop paper cup machines achieve high-speed production while maintaining long-term stable operation, reaching industry-leading standards in product consistency and quality stability. In particular, the upgraded multi-stage hot air system and the optional intelligent inspection module effectively enhance cup sealing integrity and the yield rate of finished products.

Relying on its independent R&D capabilities and forward-looking industry insight, Zhejiang Newtop Machinery Co., Ltd. has built a paper container equipment system covering multiple application scenarios for its customers. As of 2026, the company has formed eight core product series, meeting diverse customer requirements in terms of production capacity, automation level and product specifications:

• Horizontal machine series: NEWTOP-258S, NEWTOP-228W
• Servo paper cup machine series: NEWTOP-FB158S, NEWTOP-FB100S
• Servo paper bowl machine series: NEWTOP-FW125S, NEWTOP-FW125C, NEWTOP-FW135S, NEWTOP-FW135C
• Paper cup machine series: NEWTOP-168S9, NEWTOP-1118S+SY, NEWTOP-118C
• Paper bowl machine series: NEWTOP-1250S, NEWTOP-5000S
• Special-shaped machine series: NEWTOP-1250D, NEWTOP-5000D
• External wrapping machine series: NEWTOP-FW125WT, NEWTOP-FW125CWT, NEWTOP-118DT, NEWTOP-1250WT
• Packaging and supporting series: NEWTOP-DXD110/DXD150, NEWTOP-DKX530, NEWTOP-DK500, NEWTOP-YB150

Looking ahead, Newtop will continue to drive paper container intelligent manufacturing equipment toward higher efficiency, lower energy consumption and greater intelligence, providing global customers with even more reliable and efficient paper container production solutions.
