1. Mechanical Behavior NEWTOP-168S paper cup machine is an efficient, intelligent and environmentally friendly paper cup forming machine. It adopts digital control mode and uses servo motor to control the paper cup forming process with high precision to achieve fast, accurate and stable
2. Mechanical parts are guaranteed for 5 years, electrical parts and vulnerable parts are guaranteed for 1 year.

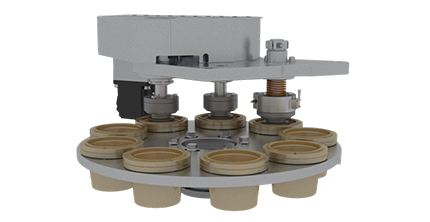

Rotating paper suction: Can prevent paper jams.

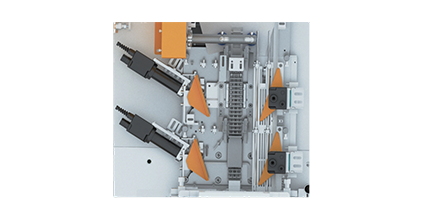

Servo welding technology: Allows welding pressure to be adjusted through the numerical control system.

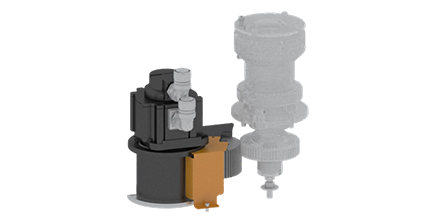

Three independent fixed hot air devices and Curling preheating: Achieve efficient preheating.
Strengthened cup bottom positioning
NEWTOP-168S：Speed and Intelligence in Paper Cup Production
| Model | NEWTOP-168S |
| Weight | 3400kg |
| Machine encasement dimension | 3100x1600x2100mm |
| Cup counting holder packing specifications | 1230x610x1900mm |
| Rated power | Three-phase 380V, 26KW |
| Compressed air | 0.6-0.8MPa, 0.5m3 /min |
| Max Capacity | 168pcs/min |
| Paper materials | Single PE/Double PE/PLA |
| Paper thickness | 0.295-0.445mm |
| Product range | (D1) φ60-95mm (H)50-135mm |
| (D2)φ40-75mm (h)5-12mm |
2.5oz-10oz Paper Cup Size
158 pcs/min Max Capacity
11oz-43oz Paper Bowl Size
180 pcs/min Max Capacity
30OZ-170OZ Paper Bowl Size
115pcs/min Max Capacity
New Debao people pursue the concept of high quality and technology leading.
By changing the working mode with intelligent paper cup machine to make the operation more and more simple.
