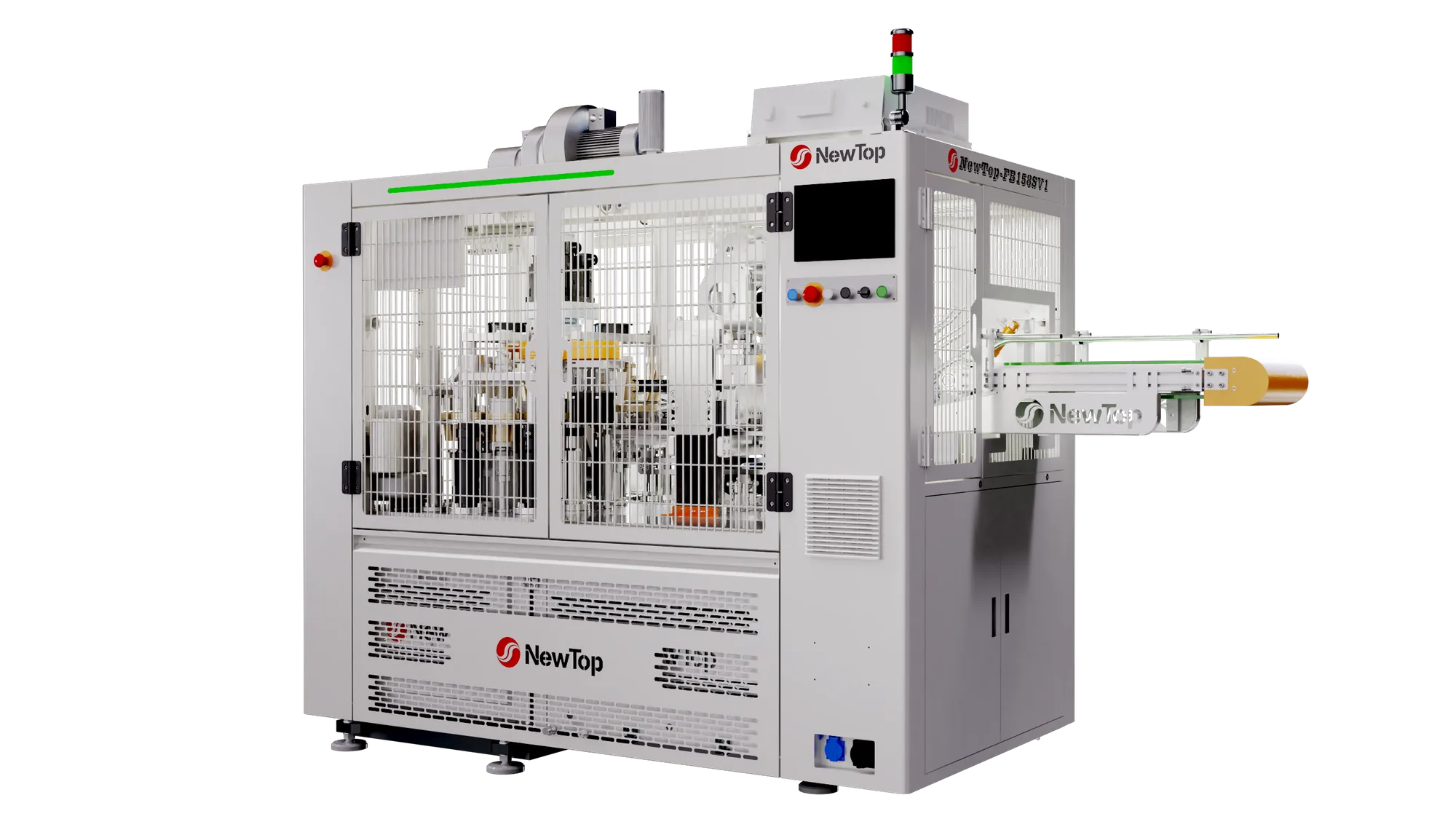

1. NEWTOP-FB158SV1 servo paper cup machine's max capacity is up to 168pcs/min, CE certified, suitable for cup rim outer diameter D1 φ50-85mm and bottom diameter D2 φ35-60mm.
2. Small in size, specially designed for small cups and thin paper market universal paper cups.
3. Mechanical parts are guaranteed for 3 years, electrical parts and vulnerable parts are guaranteed for 1 year.

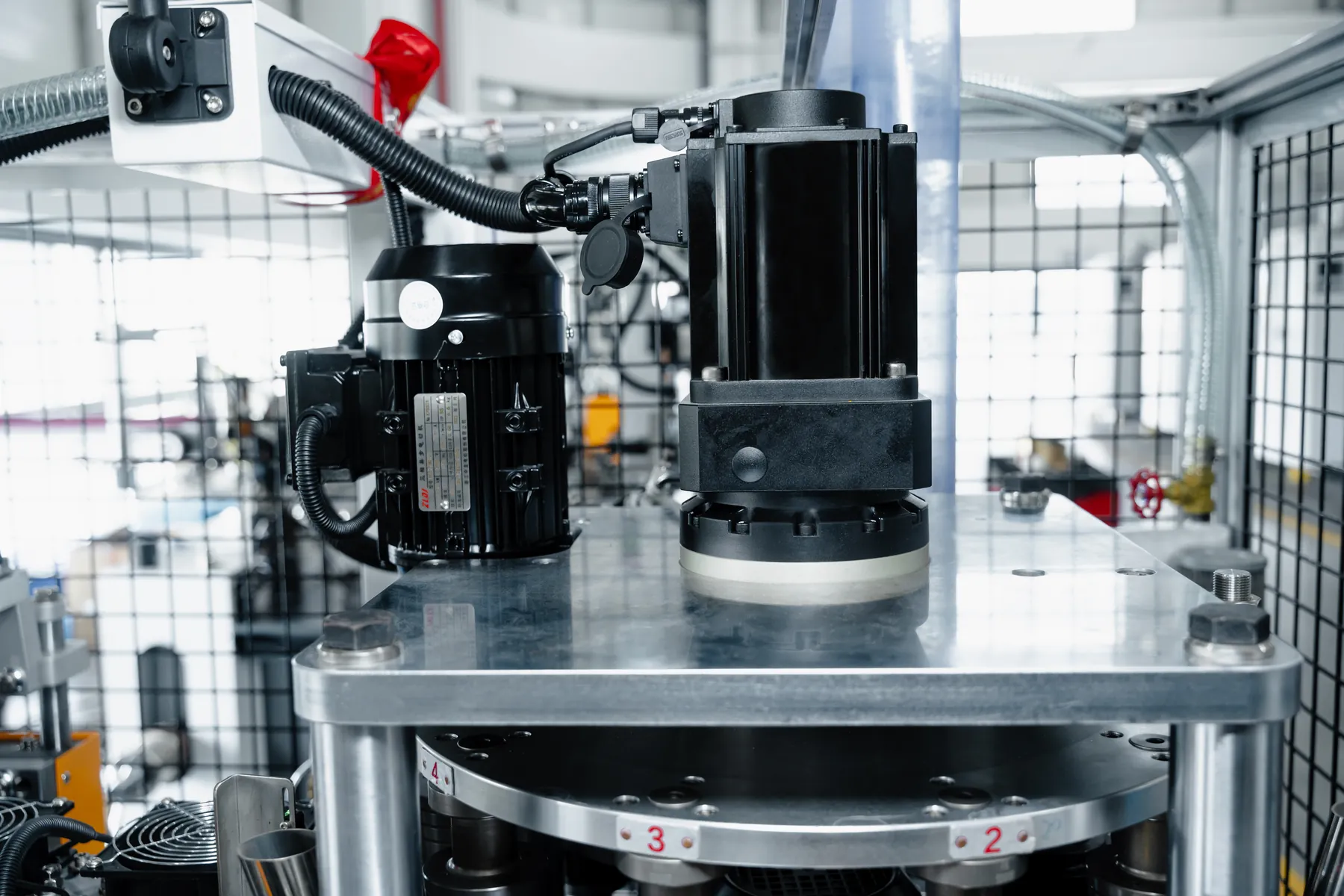

Servo driven function: It has the advantages of making the machine as a whole more intelligent and regulating more precisely.
Digital control mode and servo motor: Achieve a fast, accurate and stable paper cup forming effect.
Ethernet real-time control technology, distributed clock mechanism, electronic cam technology, and general DC bus: all these technologies operate efficiently, stably and precisely for control.
The paper cup forming is achieved through high-precision control of servo motors, integrating technologies such as real-time control via Ethernet.

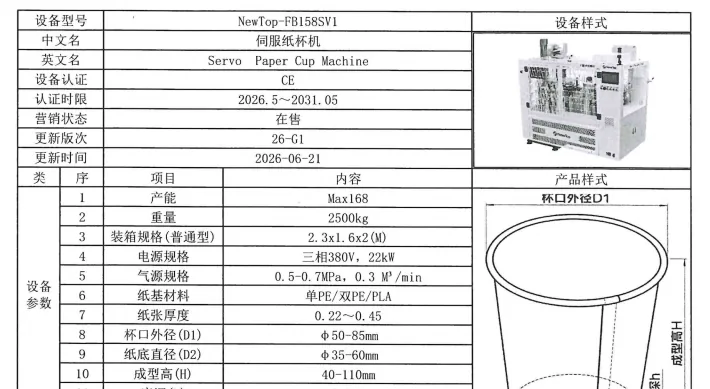

| Model | NEWTOP-FB158SV1 |
| Certification | CE |
| Max Capacity | Max 168 pcs/min |
| Weight | 2500 kg |
| Machine encasement dimension | 2.3 x 1.6 x 2 m |
| Rated power | Three-phase 380V, 22KW |
| Compressed air | 0.5-0.7 MPa, 0.3 m³/min |
| Paper materials | Single PE / Double PE / PLA |
| Paper thickness | 0.22-0.45 mm |
| Cup rim outer diameter (D1) | φ50-85 mm |
| Bottom diameter (D2) | φ35-60 mm |
| Forming height (H) | 40-110 mm |
